mXGxC6

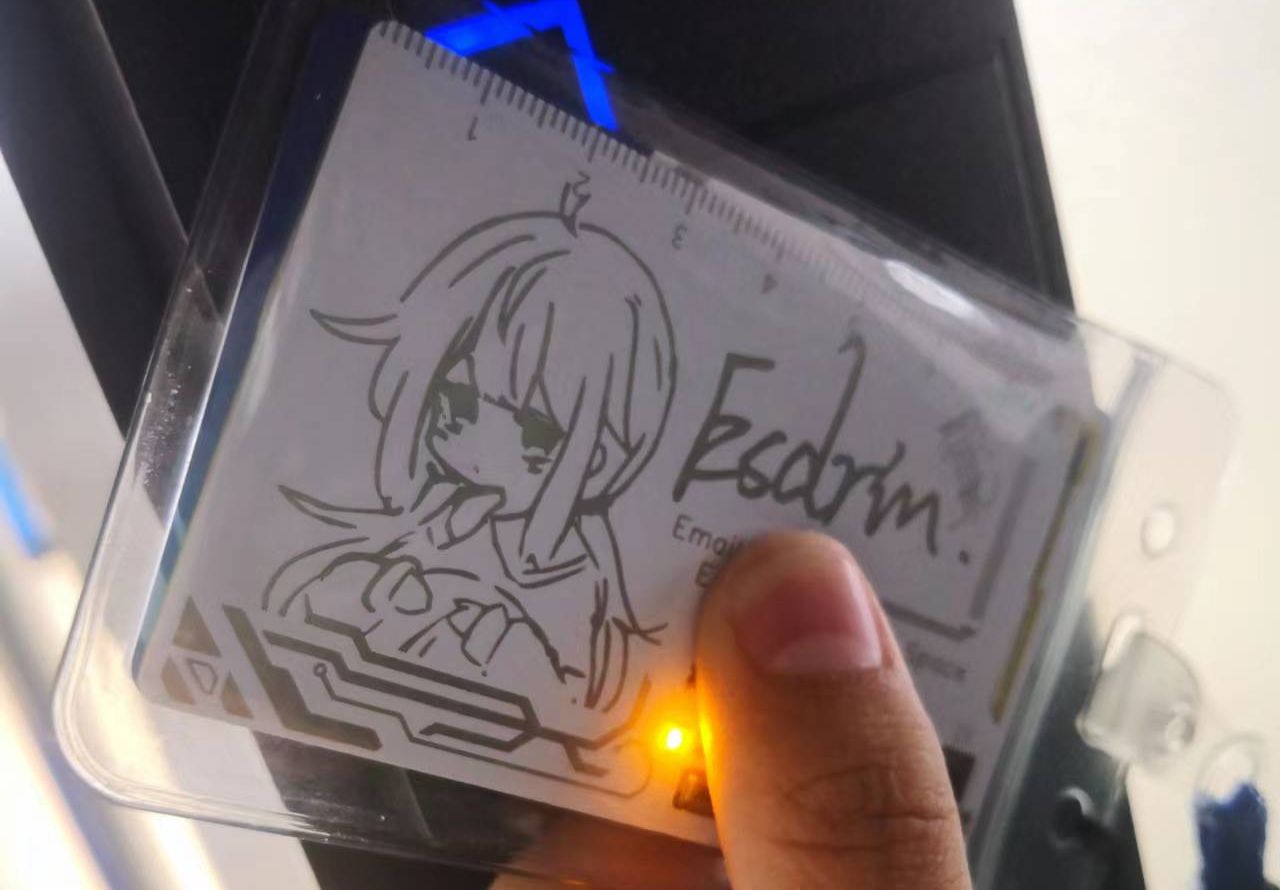

cuid4 and 1 card

Overview

PCB recommended board thickness is 1.2mm

Materials used:

0603 resistance 100Ω *1
cuid chip 5mmx8mm *4[ https://item.taobao.com/item.htm?id=612544062808 ]
0603LED yellow*1
0603LED red*4
Button 3*6*2.5 stretch switch*4[ https://item.taobao.com/item.htm?id=591040202411 ]
