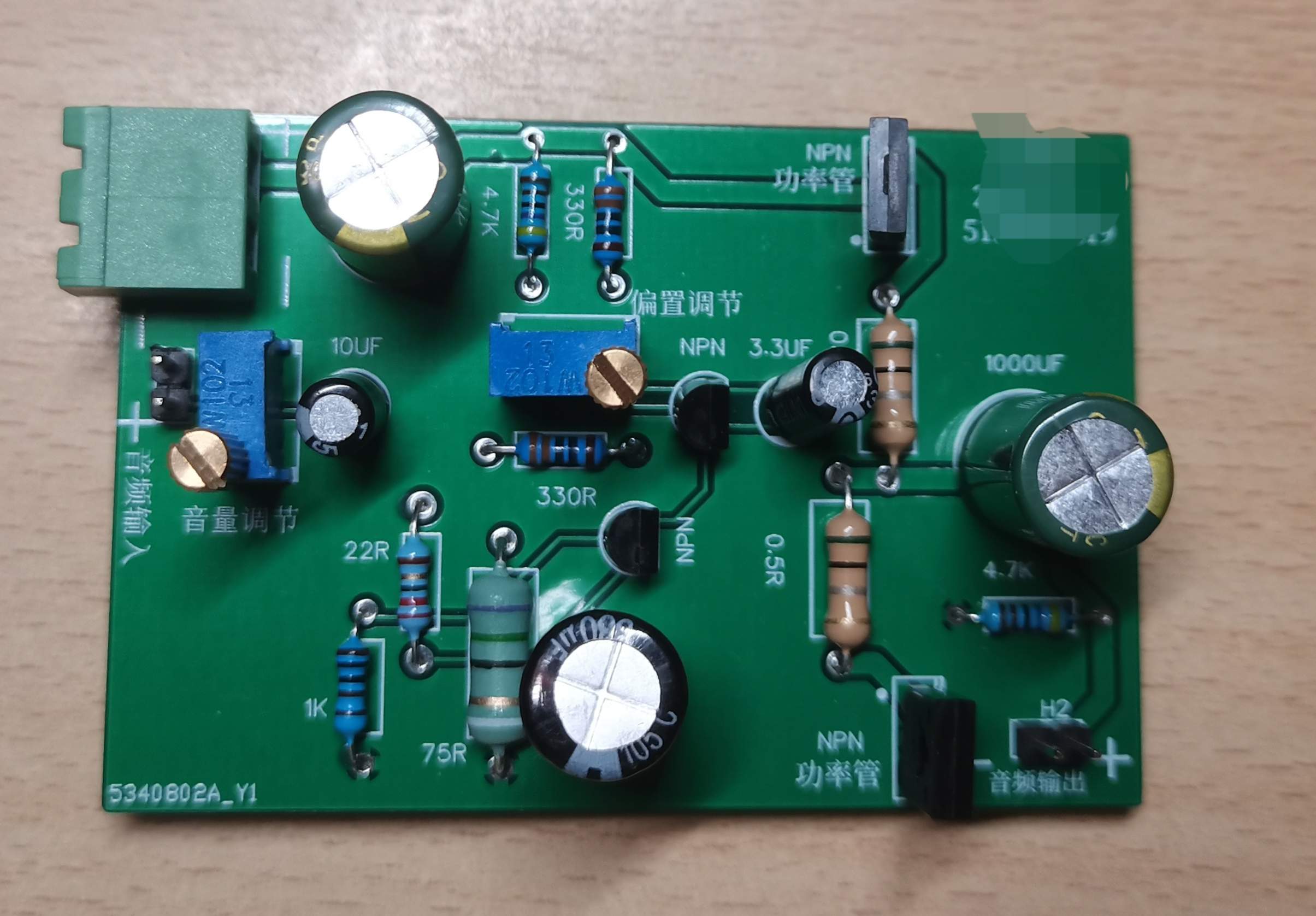

Push-pull output is performed through NPN and PNP power tubes, and a triode is used for first-level amplification. The input signal voltage is 0.2V, the output is 0.5W, and the volume is adjustable.
