ESP32 Bluetooth keyboard (four layers)

Overview

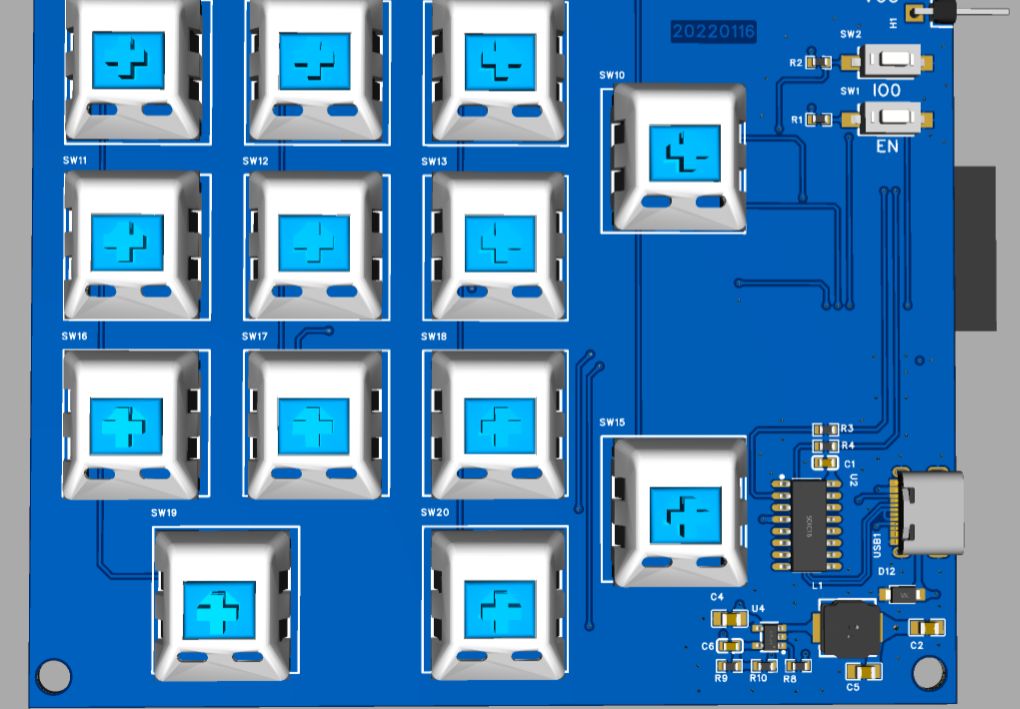

ESP32 Bluetooth keyboard, ready to use esp-idf's Bluetooth hid demo and matrix keyboard demo. The four-layer board has been sent to the factory next door for proofing. The original has not been purchased for the time being due to personal financial reasons. It may take some time to verify.
