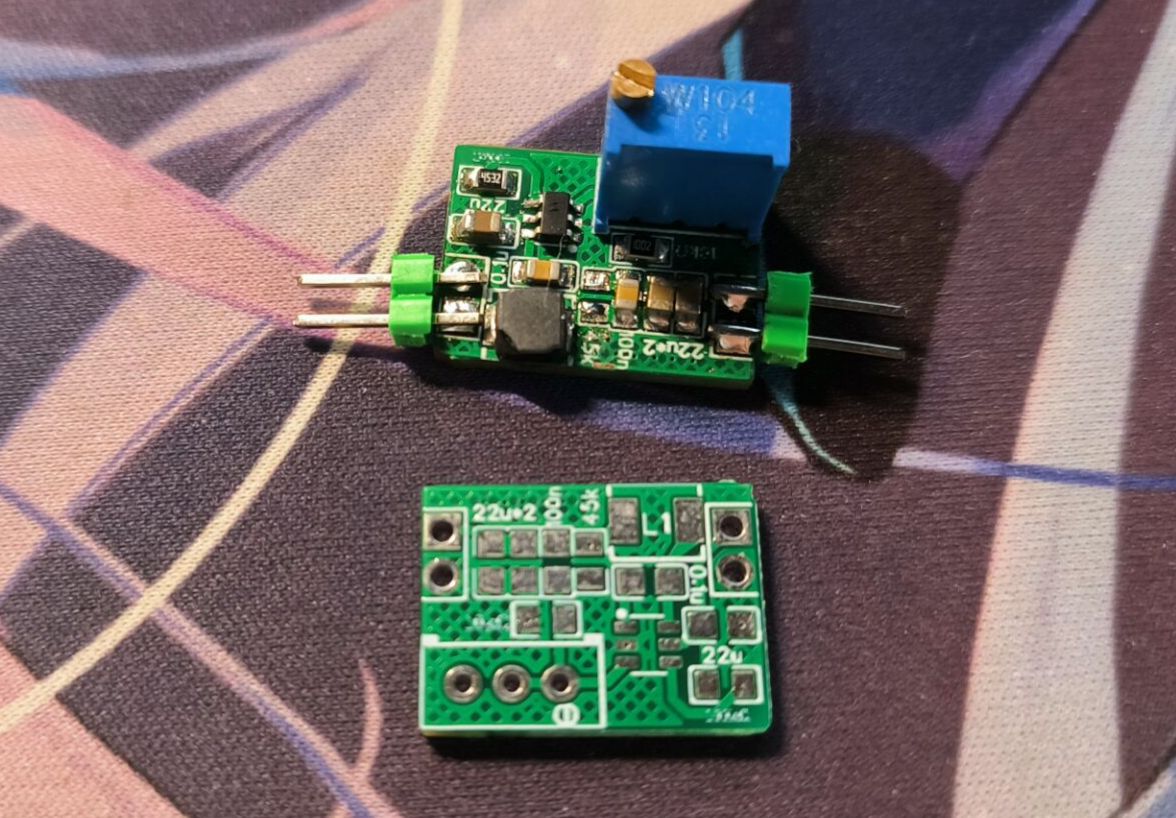

5v -> 3.3v power module
Schematic diagram and BOM table are for reference only
It can be used after proofing. 5v->3.3v 0.5A is no problem. Others have not been tested.
Fixed 3.3v and removed the adjustable resistor
Adjustable, remove the 45k resistor
