太白金星

RTC6705 image transmission V0.1

Overview

This is a 150MW image transmission system based on RTC6705 and ERC6659E chips, supporting 30.5mm flying tower installation port

Awaiting verification (the local epidemic situation will be slower)

150MW output

Both audio and video

3.3V input, it is recommended to use the BEC of the flight control

If you have any questions please suggest VX 18909438861

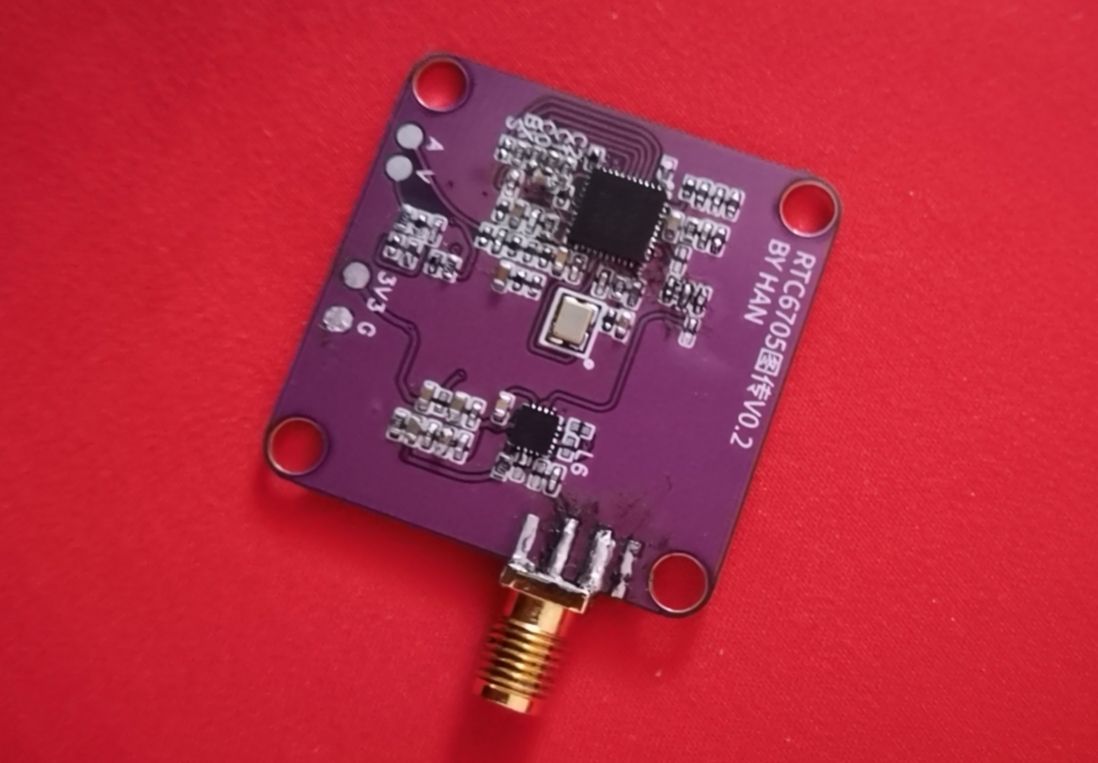

PCB temporary design

The four resistors on the left determine the frequency:

The DCDC circuit is still being drawn, so for the time being, the 3.3V input is used with the flight control BEC.

Notice! ! ! !

It has been verified that there are many problems, and the power is false, but it is actually about 150mw. Next, we will switch to another solution, 33DBM, with an output power of about 2W.

latest news

The 2W version has been verified except for the voltage stabilization part and can work normally.
