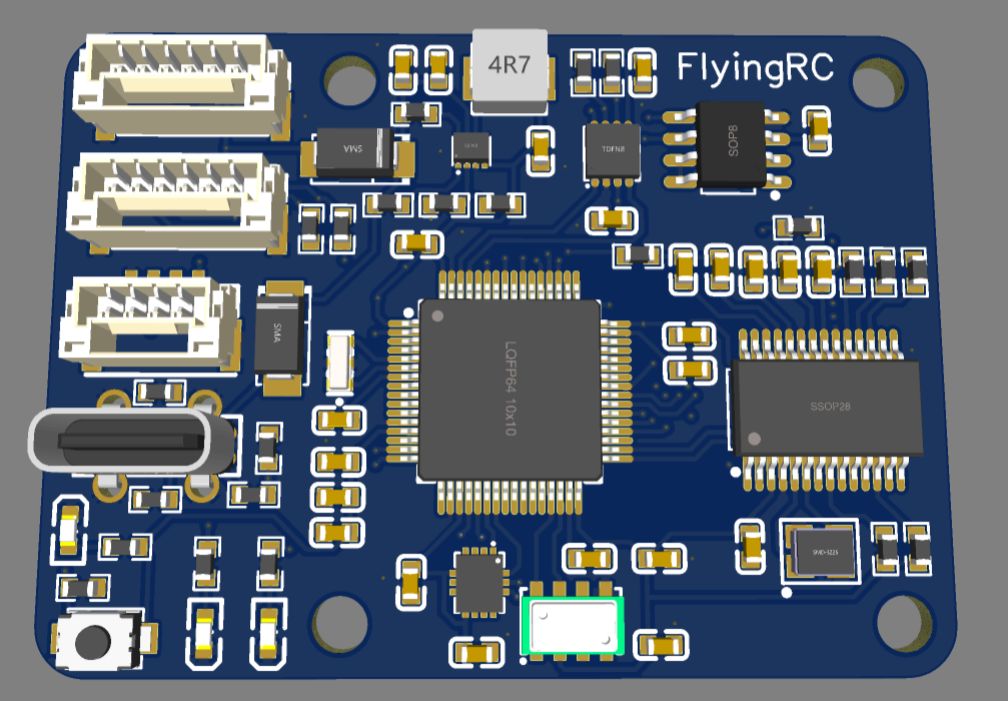

Hardware chipset: STM32F405RGT6 (MCU), BMI270 (IMU gyroscope, accelerometer, with hardware filtering), MS5611 (high-precision barometer), SIT1050 (CAN bus communication chip), MB85RS64VYPNF (FRAM, ferroelectric memory, save PARAM parameters), AT7456E (OSD)
DCDC (power supply) chipset: MP2162GQH-Z (DCDC, 3.3V2A MAX), no LDO
Connector models are all GH1.25-xP, vertical Type-C
30.5*30.5 standard space for easy expansion. The bottom pins are used with the base board FlyingRC F405 SWAMP-Base in the homepage.
If you need firmware, please join the Flying-RC exchange group and ask the group leader to compile the required firmware version.
