XL4005-12V5A V2

Overview

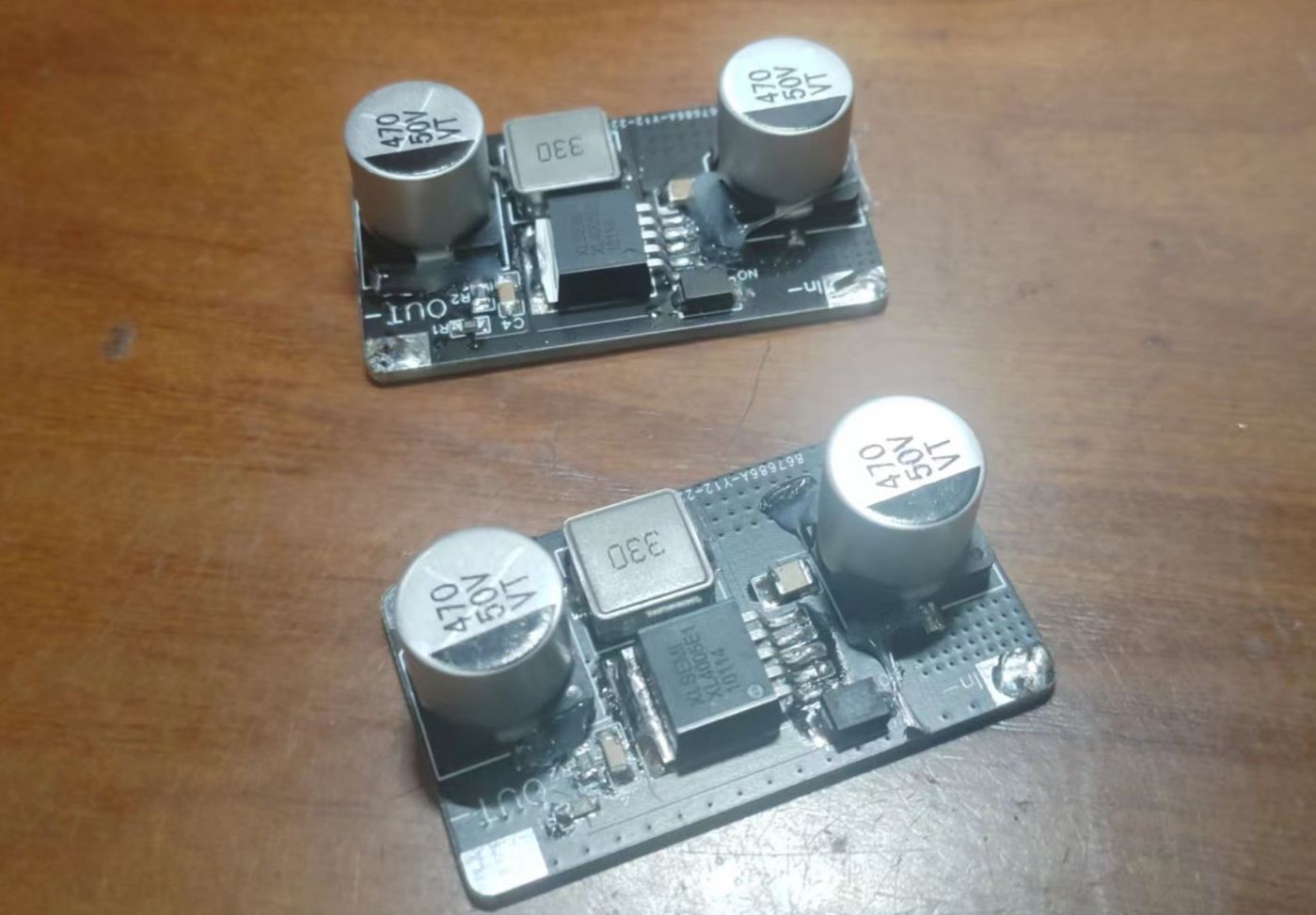

Buck module made using XL4005. I use it on model aircraft. A friend carried out "unrigorous testing" with multiple servos and felt good about it. The first servo in the video was made by me. Video link: https://www.bilibili.com/video/BV1yY4y1G7vj?share_source=copy_web

This is to reduce the area based on the original.
