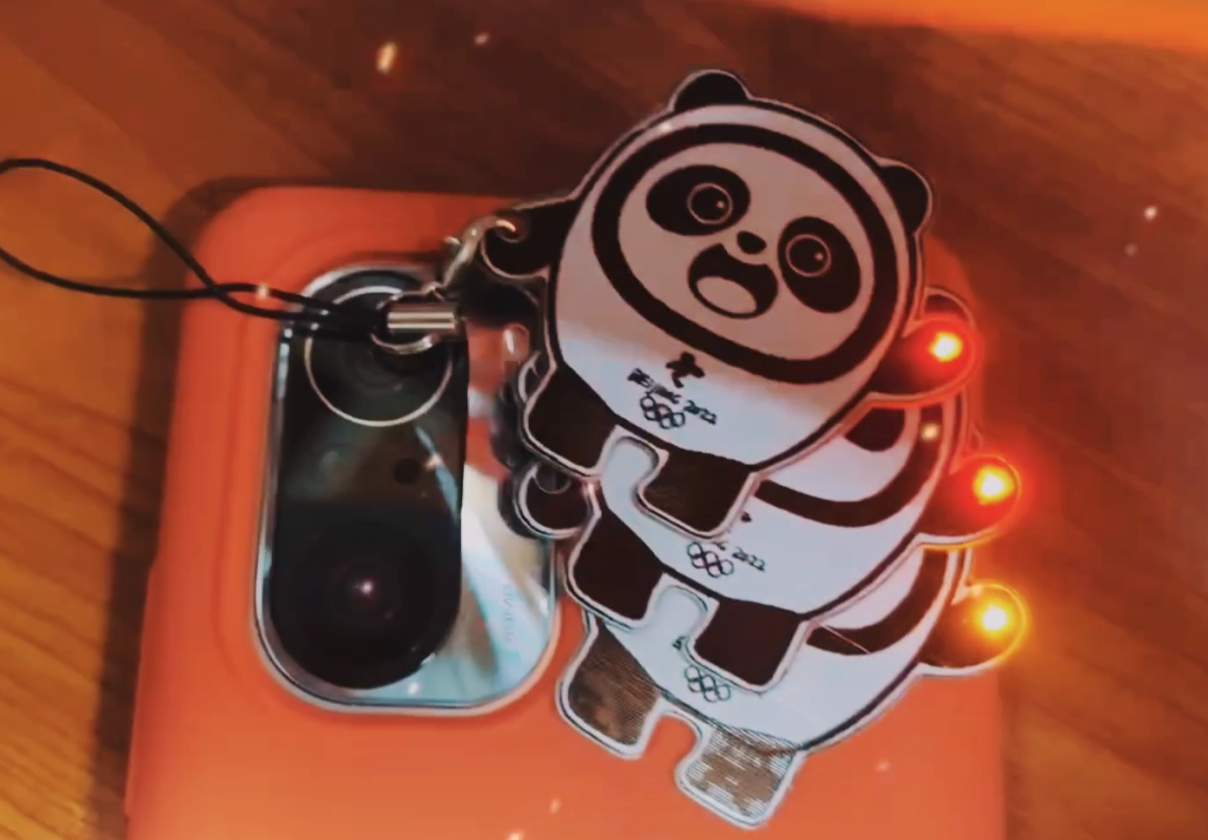

BingdundunNFC

Overview

Xiaopo Station: https://www.bilibili.com/video/BV1Yq4y1t7Sc/

The document in the attachment "Bingdundun Project"
adopts two solutions: IC card and NXP
IC card solution: currently it can swipe at the school gate and library, but there are actually hidden fun functions to be developed.
NXP solution: For the time being, it can only be used as a swipe or business card

①Solder mask: white. ②Character layer: black ③Plate thickness 1.2mm
