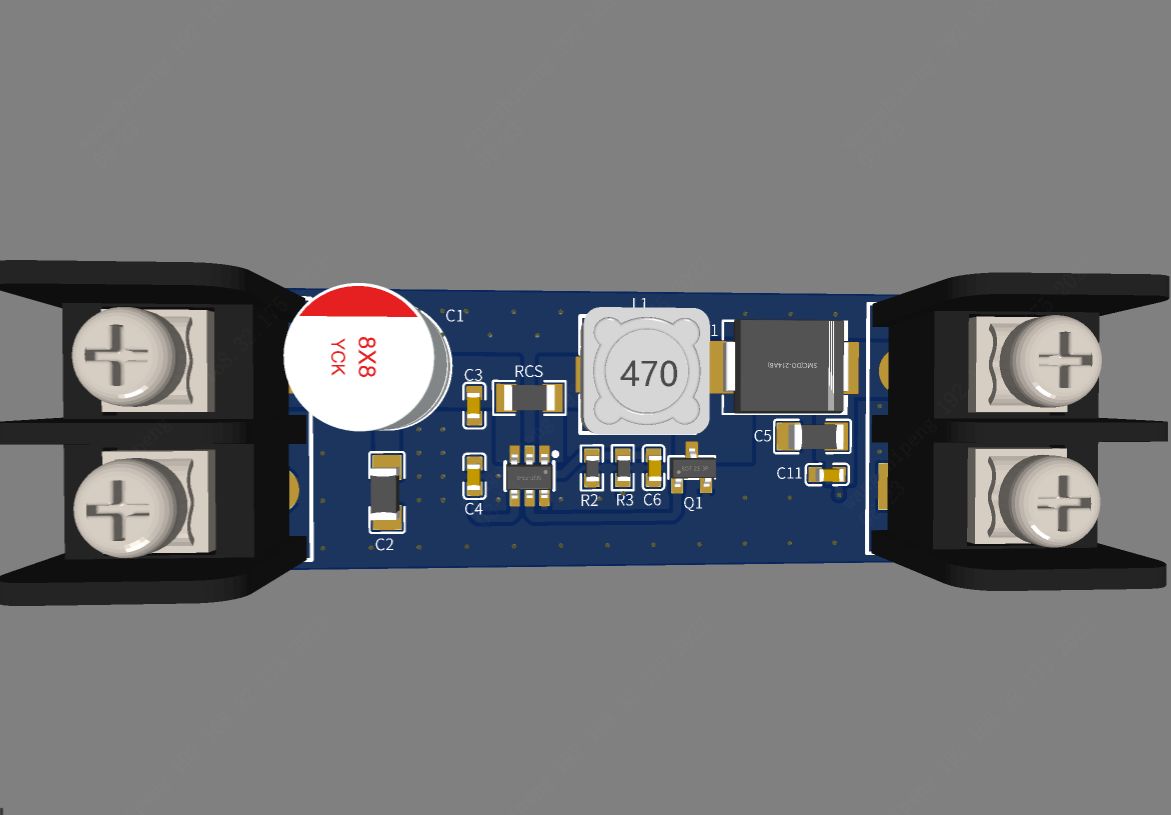

C5137696_CN3300 boost battery charging solution verification board

Overview

CN3300 is a PFM boost battery charging control integrated circuit operating from 4V to 28V. Input voltage range: 4V to 28V. CN3300 internally integrates a reference voltage source, a +5V voltage modulation unit, an inductor current detection unit, a battery voltage detection circuit and an off-chip N-channel MOSFET drive circuit. It has the advantages of fewer external components and a simple circuit.
