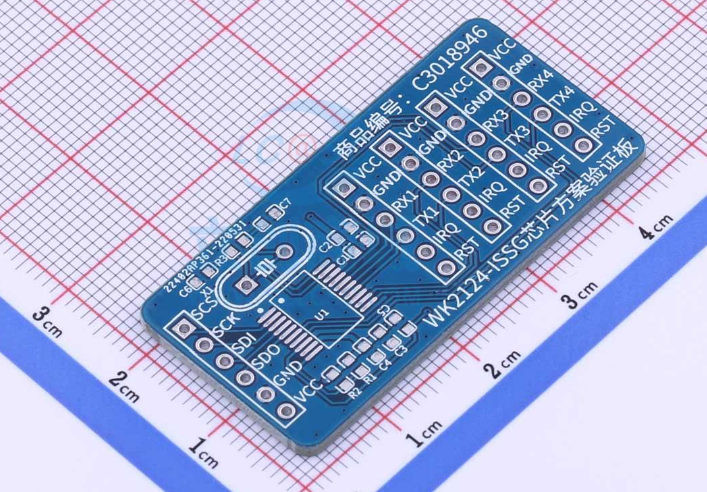

C3018946_WK2124-ISSG chip solution verification board

Overview

WK2124 implements the function of SPI bridging/expanding 4 enhanced function serial ports (UART). The baud rate, word length, and check format of each sub-channel UART can be set independently, providing a maximum communication rate of 2Mbps. Wide operating voltage: 2.5V-5V
