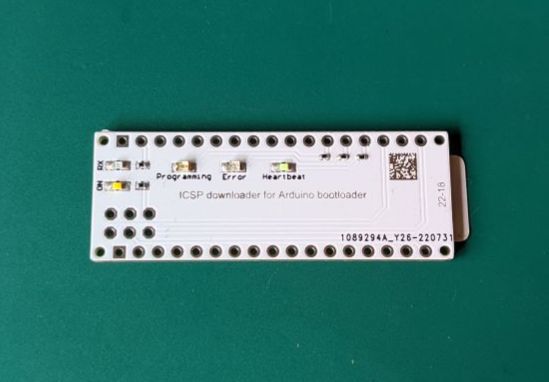

The version is compatible with Arduino Micro by default and can be connected to other boards through Dupont cables. It has 5 indicator lights, namely power ON, RX, Programming, Error, and Heartbeat.
The middle area on the front can be customized with icons, logos, etc.
Video link https://www.bilibili.com/video/BV1LT411F7cY
