DAP-Link_STM32F103C8_Type-C

Overview

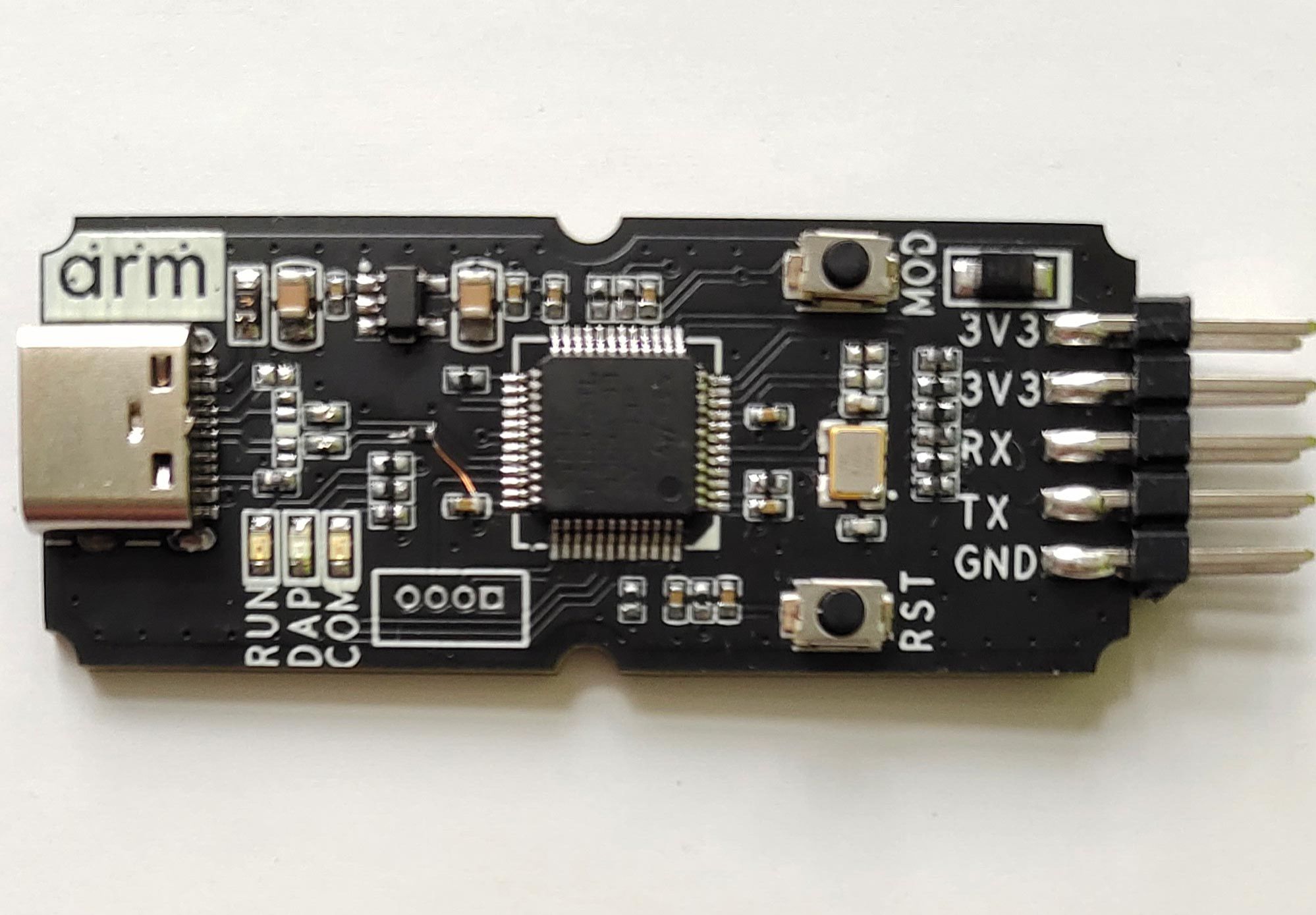

The DAP-Link open source project based on ARM MBED uses STM32F103Cx series microcontrollers, uses Type-C interface, and contains SWD and CDC serial ports. The appearance adopts a public mold solution, and the standard shell can be purchased online.

In terms of firmware, you can directly use the DAP-Link official firmware, or you can use the firmware provided by me below (the difference lies in the indicator light, the official firmware will not flash the COM indicator light during virtual serial port communication).

When burning, first burn the firmware in Firmware/Bootloader. After successful burning, connect to the computer through the Type-C cable. The computer will recognize a USB flash drive, and then copy Firmware/USBIF/*0x8000.hex into it.

The project is designed using Cadence+Allegro16.6.

Figure 1 Schematic diagram

Figure 2 PCB diagram

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
