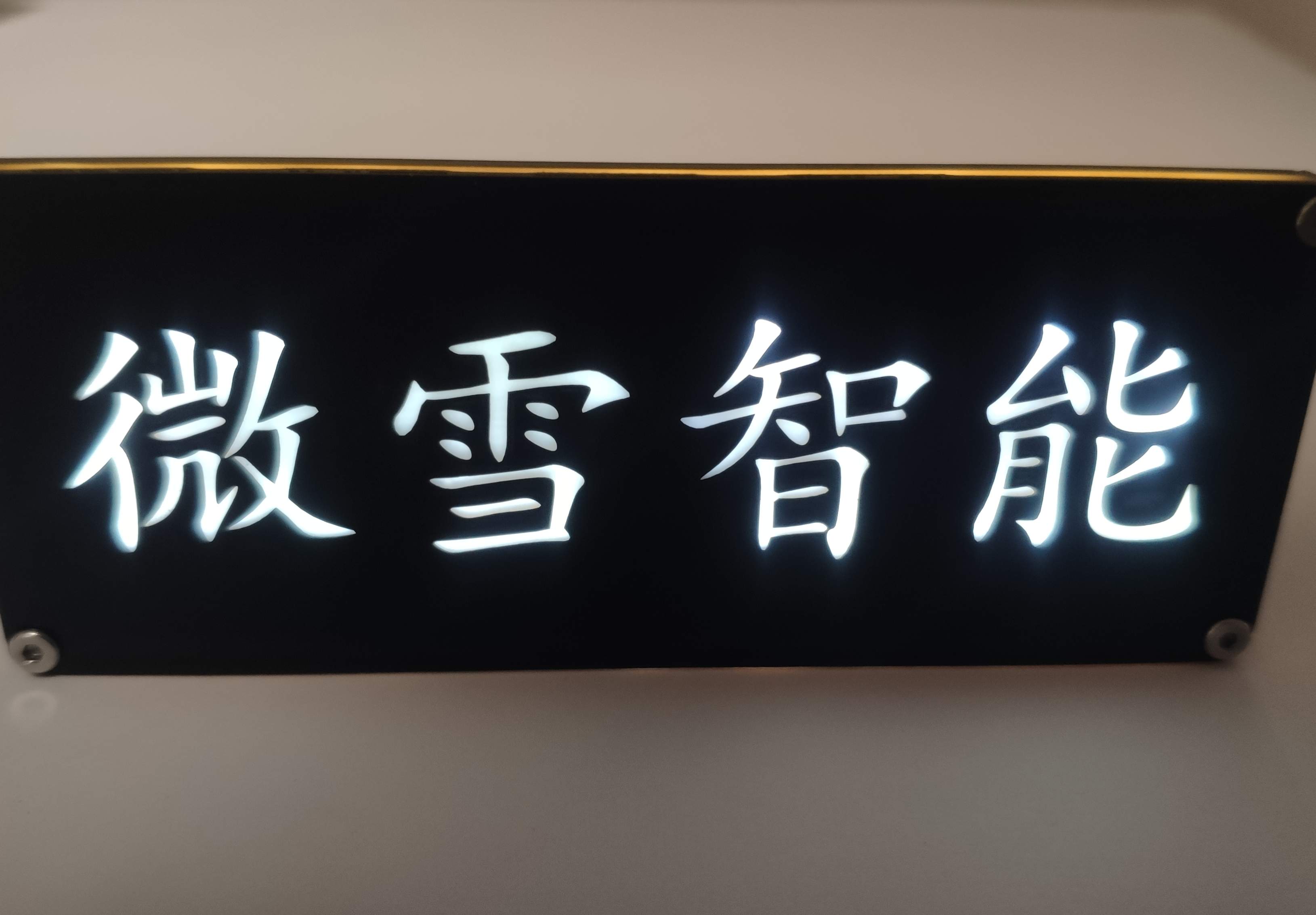

The LED luminous character ID stand made of PCB is integrated with the battery protection circuit and battery charging circuit. The switch uses a single-button switch, which is beautiful and has a long life. The charging uses a TYPE-C interface (TYPE-C YYDS).
The copper buckle characters are produced using Lichuang EDA. Due to the file size limitation of the platform, click on the text to jump to station B for the production tutorial.
CS2130 single button switch click here to jump to Taobao to purchase
In the comments, we will randomly select two free shipping LED light panels and outer frame panels. They will be sent out after the Spring Festival until New Year’s Eve.
If possible, it is recommended to add a layer of homogenizing board under the character board to make the brightness more uniform.
