Internet of Things Development Board-ESP8266

Overview

product description

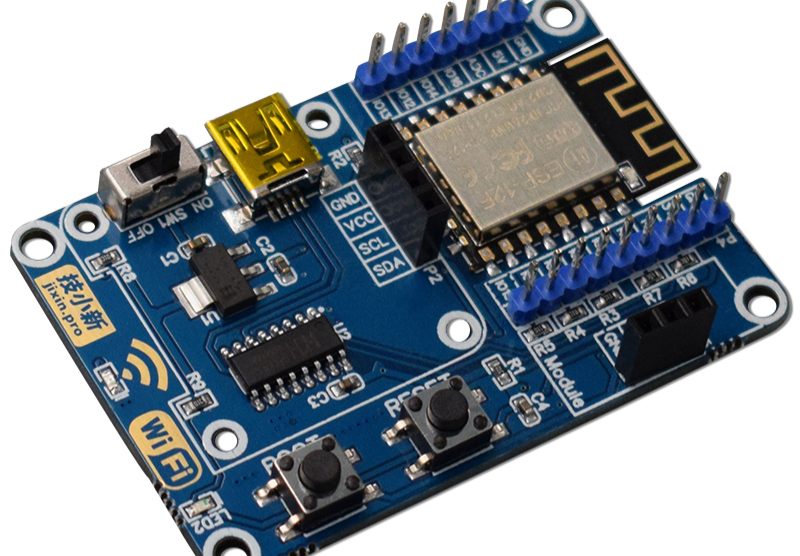

This module takes the ESP8266 module as the core, and cooperates with the voltage stabilizing circuit, USB-TTL circuit, and serial port download circuit to realize the SDK development of ESP8266 and realize the Internet of Things function. Combined with OLED and DHT11 modules, the temperature can be reported to the cloud, messages sent by the cloud can be displayed, etc.

Features

Working voltage: 5V (USB powered)
Core chip: ESP8266 module (ESP-12F)
Expansion interface: 4Pin OLED, DHT11
Implementation function: access to the Internet and realize the Internet of Things
Pin function table

symbol P1 P2, P5 P3, P4 P6
describe
MiniUSB: power supply + serial communication

Module interface: OLED, DHT11

Pin header interface: VCC/GND + IO port

Module: ESP8266 module (ESP-12F)

Design Files
