STC15F2K61S2 development board

Overview

STC15F2K61S2/STC8F2K16S2 development board

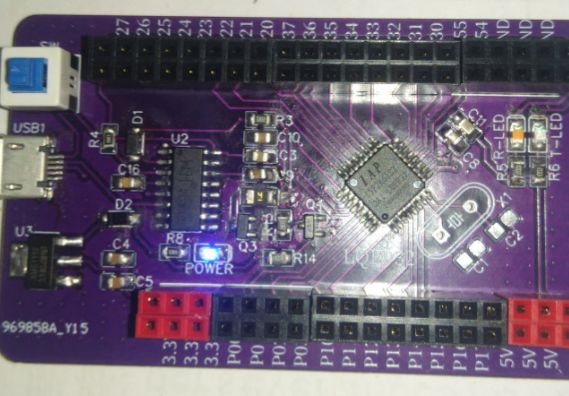

The main control chip of the STC15F2K61S2 development board is the STC8F2K16S2-28I-LQFP32 microcontroller. It is also compatible with: STC8F2K16S2-28I-LQFP32 microcontroller. It has an automatic cold start function and does not require manual restart when downloading the program. All IOs are doubled, with 5V and 3.3V power supplies, and a main switch. The board is compact and suitable for personal study.

- Physical map

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
