Flow lamp patch welding training

Overview

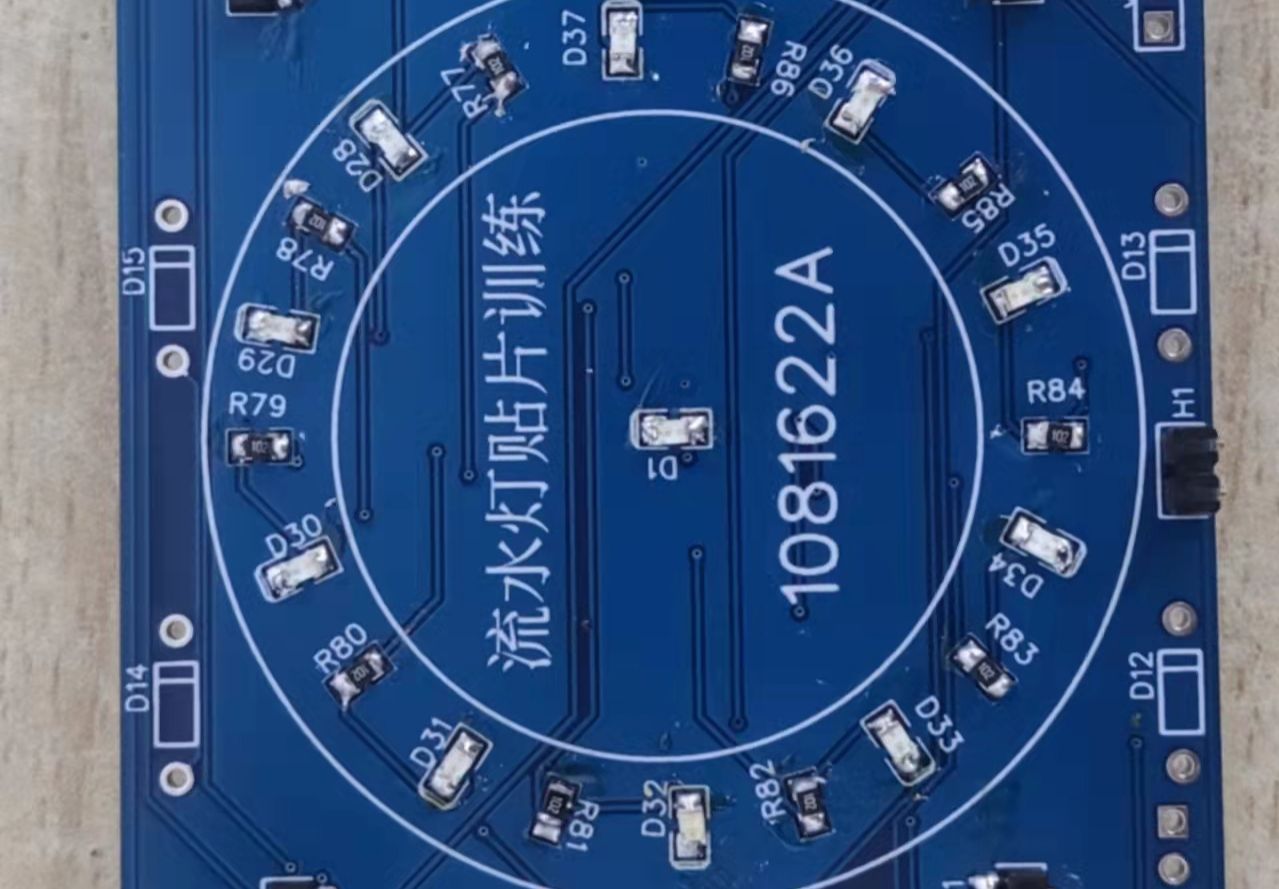

The running water lamp is based on NE555DR and CD4017BM/TR. These two chips can achieve the effect of running water lamp and timing flashing. The bottom layer adds a variety of welding patch packages. Considering the use of teaching welding training, the power supply adopts the pin header method, which can be used with Jiali. Used with Chuang’s DC regulated power supply
