Lithium battery charging board

Overview

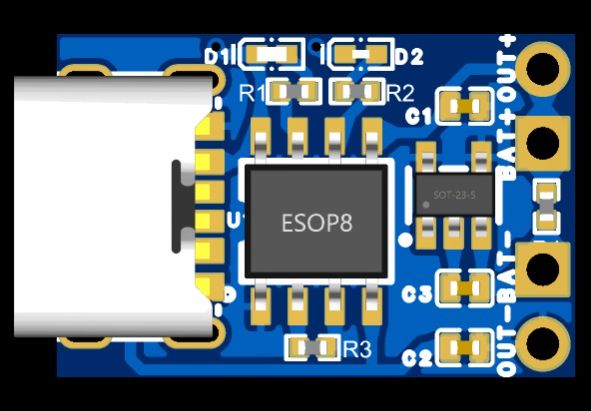

Using the combination of tp4056+5352A, it has two-in-one charging and protection functions

Ultra small size 18mm x 12mm

Using the combination of tp4056+DW06D, it has two-in-one charging and protection functions

Dimensions only 24mm x 12.5mm

Click on the upper right corner to open the editor. Designed by novices, everyone’s criticisms and corrections are welcome.
