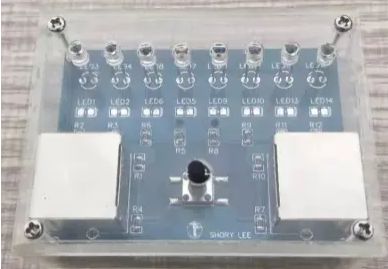

The simplest electric light principle is that the LED is connected to the battery and the key switch. When the key is closed, the LED light turns on. Connect the 2 network ports to a network cable to be tested. If the network cable is intact, all 8 LED indicators will light up.
