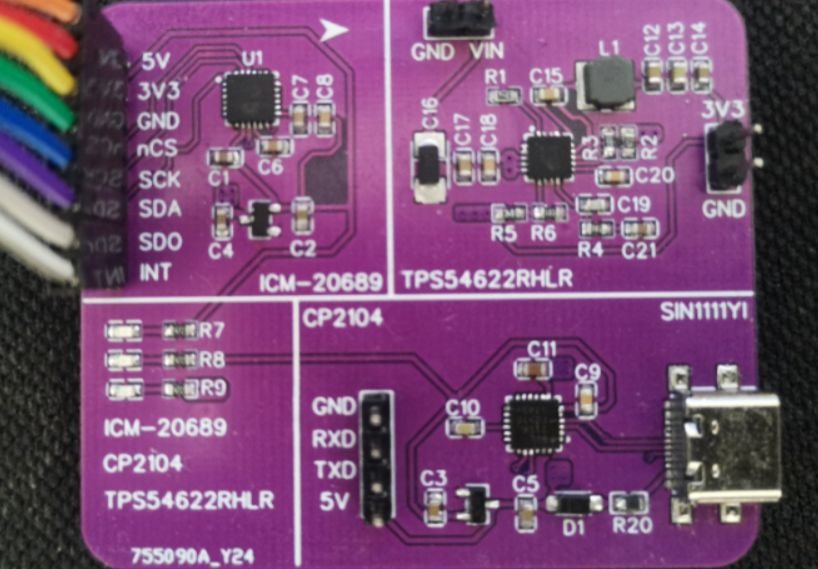

The three LED lights in the lower right corner indicate the powered-on chips in the order of the silk screen. The arrow in the ICM20689 part indicates the X-axis coordinate in the right-hand system. This solution has been verified.
