msp430f5529 expansion board

Overview

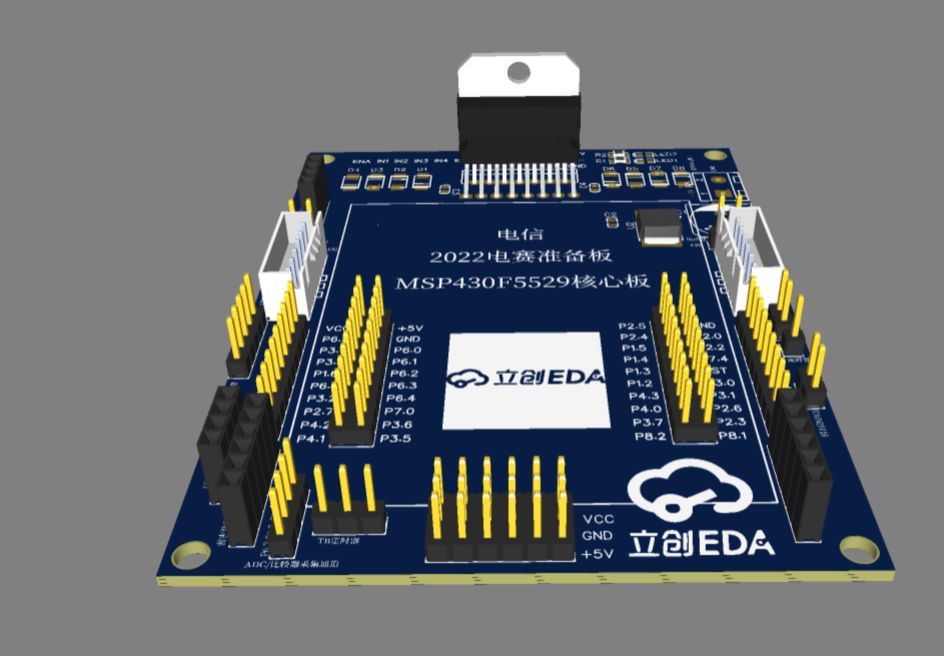

Needless to say, the principle is just like an expansion board. It
contains some module interfaces as follows:
MPU6050, TM1638 matrix keyboard, 0.96OLED screen interface, WiFi/Bluetooth interface, and the peripheral circuit of L298N is also drawn, providing coding 1 DC brush motor interface of the device.
Some peripheral interfaces of MSP430f5529 are also introduced, as follows:
comparator ADC acquisition channel, TA0 timer, TA1 timer, TA2 timer, and TB timer.
The number of each pin inside has been marked to facilitate later wiring and installation.
