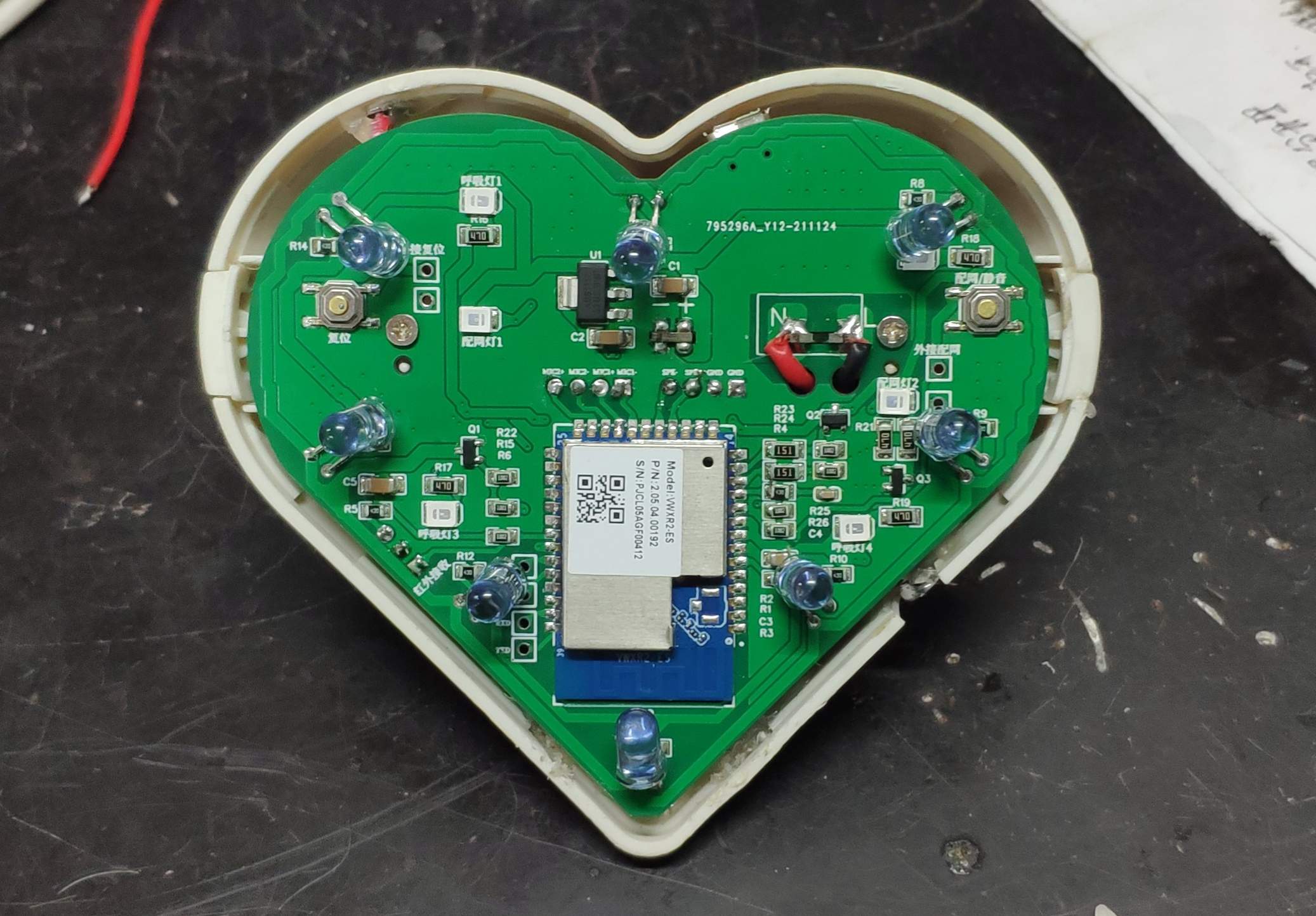

I made a circuit board outline based on the shape. During the process, due to the irregular shape, several carvings were not suitable. Fortunately, I was patient and finally got the shape.
Finally, I drew a board based on this template. ,
I look forward to making a fun thing
The attached video is a bit large and cannot be uploaded. Please attach the link to station B: https://www.bilibili.com/video/BV1fi4y1d7Xf/
