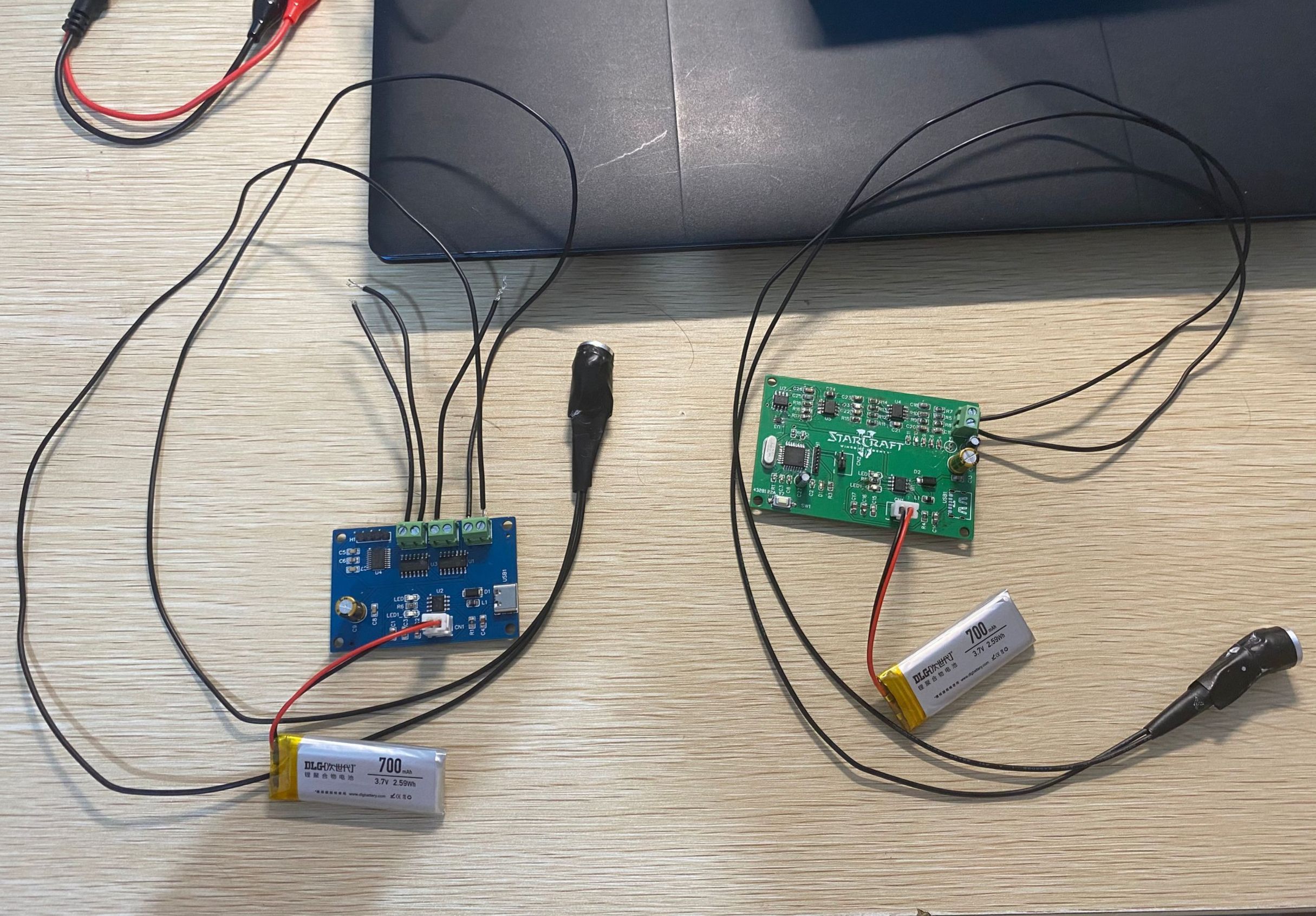

Underwater communications mostly use sound waves, and the transmission distance of 40kHz can be relatively long. Here I try to combine the two years of undergraduate study and try the frequency shift keying method using 40kHz as the carrier, and make some preliminary attempts in underwater acoustic communications, for Lay a solid foundation for the future. The project is simple. It is the first time for a novice to make water sounds. I hope you guys can give me your criticisms and corrections. [Basic idea] Module 1: stm8 signal input. PC iar programming control generates a string of unicode encoded signals. Module 2: Frequency shift keying modulation (2FSK). Using keying method, two different frequency (40kHz, 20kHz) carriers are used to modulate a unicode-encoded signal. Module 3: Ultrasonic transducer 1. Immersed in water, it emits a transmission signal. Module 4: Ultrasonic transducer 2. Immerse in water to receive transmission signals. Module 5: Filtering, envelope detection, and power amplification. Filter 40kHz, capacitor envelope detection, and power amplification to obtain a level signal that can be processed. Module 6: Schmitt trigger. The Schmitt trigger modified from 555 basically restores the original string of unicode-encoded text signals. Module 7: SYN6288 speech synthesis. Based on the text signal and the appropriate command frame (also transmitted by the signal), the speech is synthesized. The use of SYN6288 here is mainly for verification. The basic requirement is that the TXD end of SYN6288 responds with 0x41 (successful feedback signal is received). The advanced requirement is that SYN6288 can listen to sound. /******************/Updated on 2022/7/26/****************/The original project has been replaced by "Simple Water Acoustic "Communication Machine" was changed to "Simple Underwater Acoustic Communication Machine - Modem and Demodulation Part". The capacity is limited, the whole machine was put into water for testing, and there was a problem with the ultrasonic probe. As a last resort, we can only share the modem and demodulation part of the original underwater acoustic communicator. Figure 1 Overall machine diagram (including ultrasonic probe)
Frequency shift keying (2FSK) modulation module.ms13
BOM download
