supremeOne

LED24X8 dot matrix

Overview

The first open source dot matrix: LED dot matrix 24X32 cascade screen - Jialichuang EDA open source hardware platform (oshwhub.com)

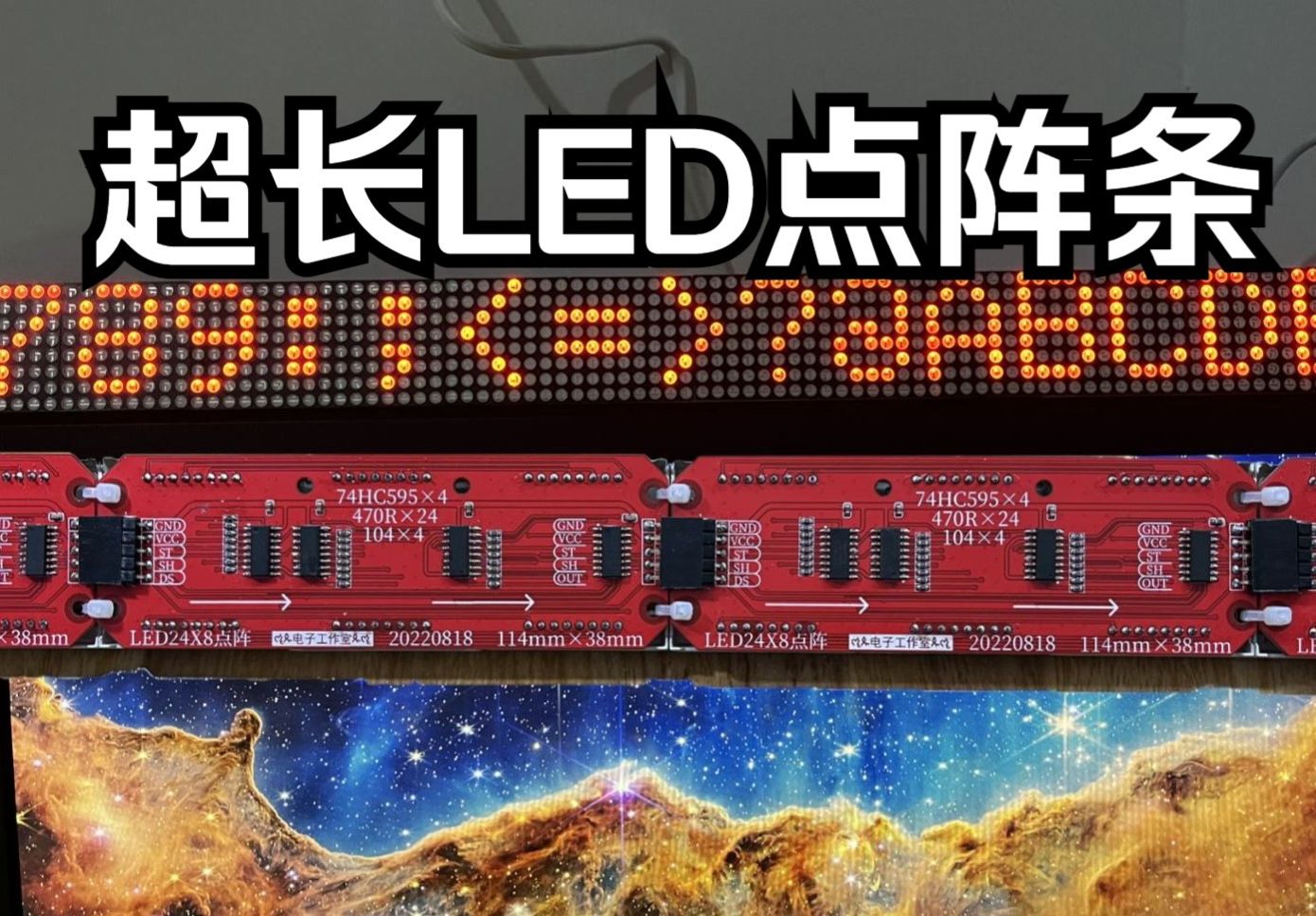

The dot matrix module open sourced this time is the longest dot matrix module within the range of 10cm.
The dot matrix that can be sampled for free is TB Laowu's 1588 common anode dot matrix, with a size of 38mm*38mm, and a
dot matrix purchase link of 2 cents: https://docs.qq.com/sheet/DYm1tTUFlRWhkQVJt

Actual display: Ultra-long LED dot matrix production display, 96*8_哔哩哔哩_bilibili

Third Edition PCB Preview: 74HC595 dot matrix circuit design optimization_哔哩哔哩_bilibili

Pay attention to the dot matrix on both sides when welding, and don't let it sink.

Warm reminder: After collecting the project, you can see the entire project file in the personal EDA interface. For PCB proofing, select PCB2
