15v power amplifier

Overview

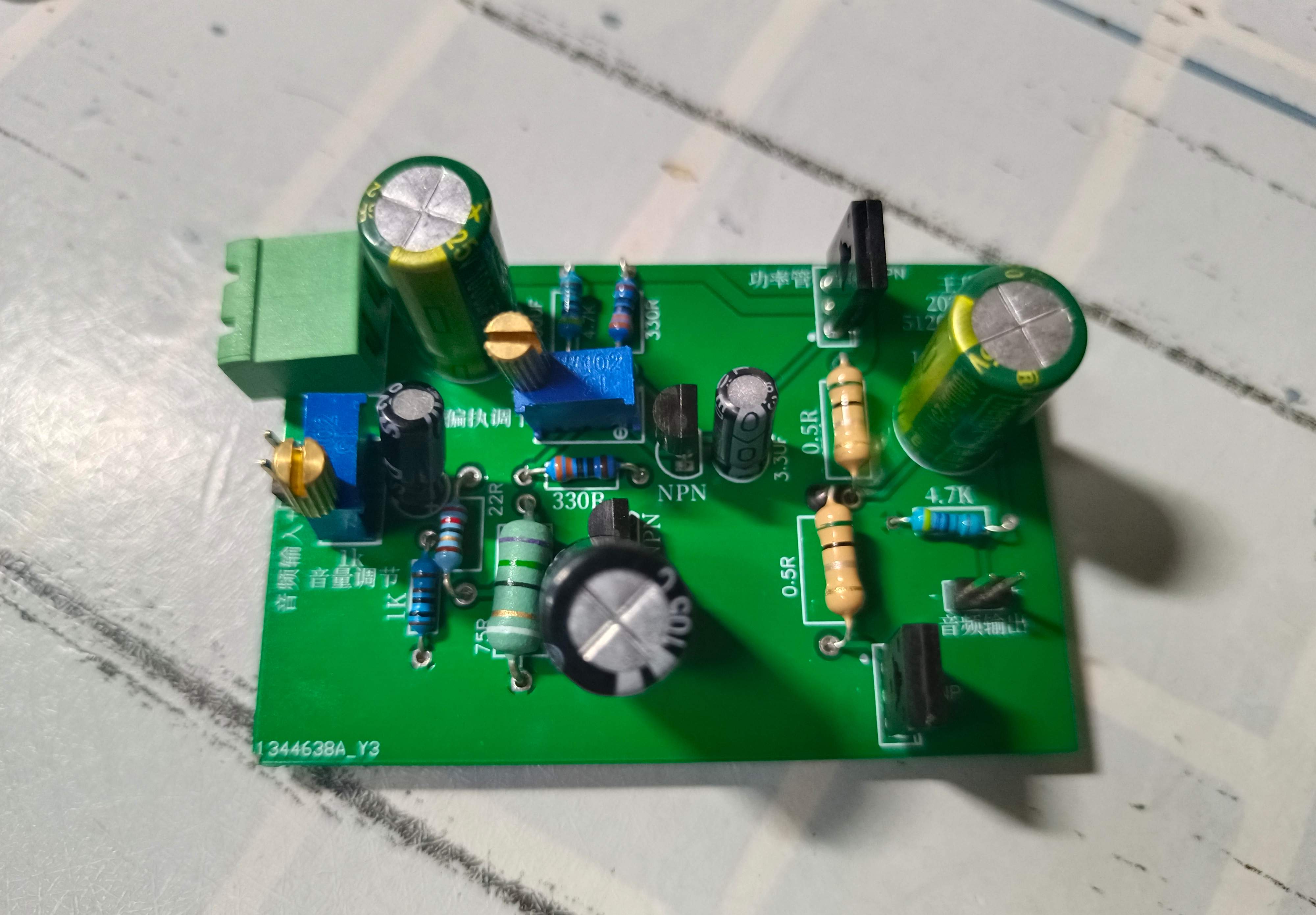

The input signal is input from the port input end, and passes through the resistor voltage dividing system. The 1kR resistor provides a bias for the base stage of the triode, and then enters the common emitter amplifier circuit, and then passes through a Vbe multiplier. Note that it needs to pass through the second triode. The Ib of the base should be much smaller than the current I passing through the voltage doubler, and then go through a push-pull circuit. Two 0.5R resistors to prevent thermal breakdown are connected to the emitter, and the final output
