IP2368 [PD100 watt 2 to 6 string lithium battery charge and discharge module]

Lithium battery charging module designed based on Yingjixin IP2368-NACT chip
(applicable to IP2368-NACT, IP2368-COUT)
An electronic exchange group: 232586710

BOM list, please open the schematic to export it manually! The one automatically generated by the system at the bottom may be wrong!
Please open the schematic to export the BOM list manually! The one automatically generated by the system at the bottom may be wrong!
Please open the schematic to export the BOM list manually! The one automatically generated by the system at the bottom may be wrong!

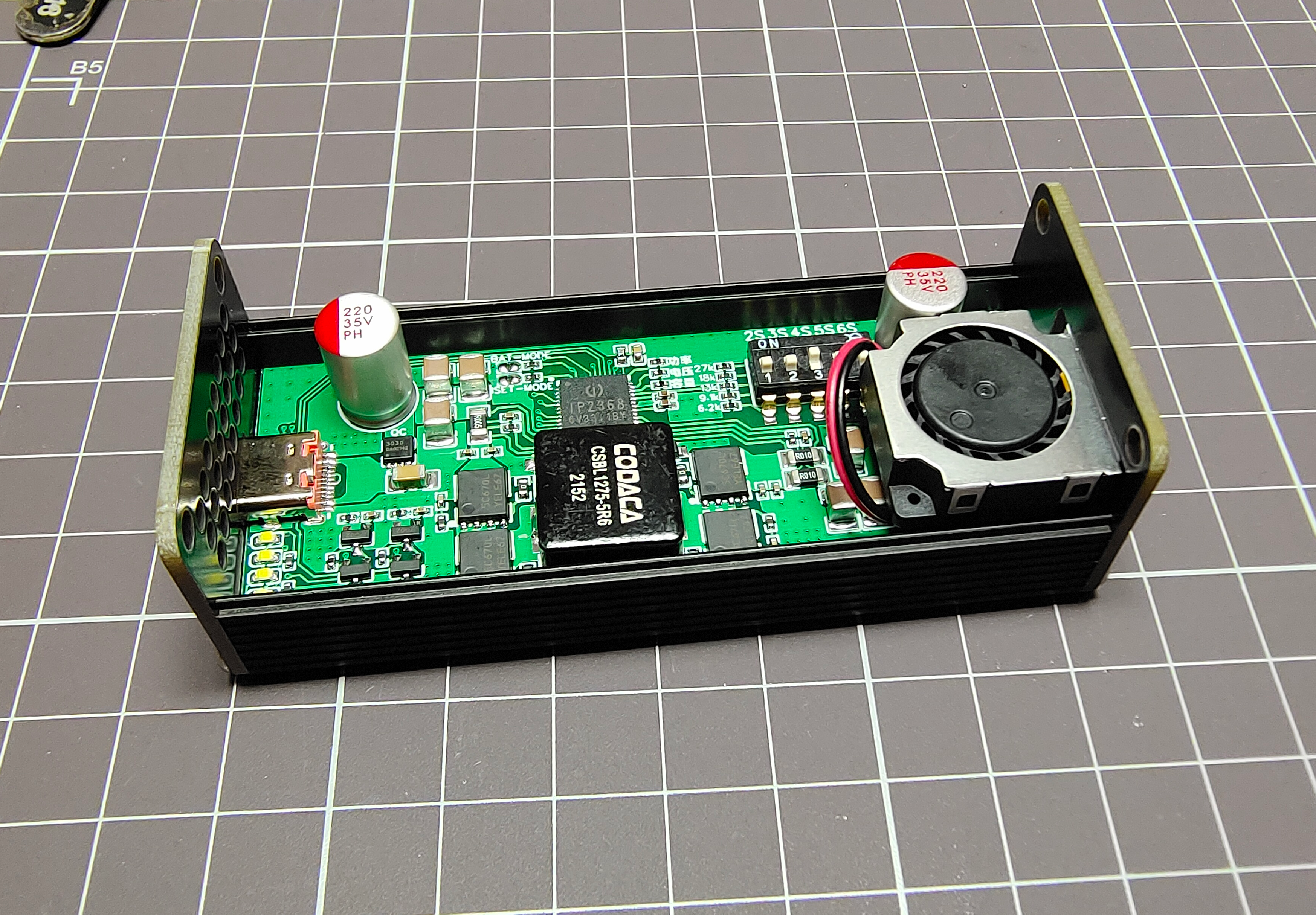

TYPE-C interface input module with reverse PD 100 watt output that
can charge 2 to 6 lithium batteries Integrated FCP Input and output fast charging protocol integrated AFC Input and output fast charging protocol integrated SCP Input and output fast charging protocol integrated DRP Try.SRC protocol , PD3.0 input and output fast charging protocol integrates QC2.0/QC3.0/QC3.0+ output fast charging protocol supports 2/3/4/5/6 cells in series. The maximum number of battery strings can be switched by a DIP switch. Discharge power 100 watts 100 watts power charging and discharging requires more than 4 strings of battery packs. The type of battery supported (full charge voltage) is a ternary lithium battery cell with a single cell voltage of 4.15 volts, 4.2 volts, 4.3 volts, 4.35 volts, and 4.4 volts. Lithium iron phosphate battery input with section voltages of 3.55 volts, 3.6 volts, 3.65 volts, and 3.7 volts supports power modes of 20 watts, 30 watts, 45 watts, 60 watts, and 100 watts. Current modes are 1 A, 2 A, 2.5 A, and 3 A. , 5A shell link (click the text to jump) fan link (click the text to jump) DIP switch link (click the text to jump) temperature control switch link (click the text to jump) thermal silicone grease pad link (click the text to jump) Aluminum alloy heat sink link (click on the text to jump) Regarding the inductor, I use Kedajia CSBL-1275-5R6. There is currently no retail channel for this inductor (it can only be purchased as a whole). The inductor inside the BOM table is Sunlord brand MWSA1206S-5R6MT rated current 13A DC resistance (DCR) 11mΩ, Lichuang Mall No. C408522 20V 5A PD 100W input, charging 4 strings of batteries, the highest efficiency is about 98%. The temperature control switch can be welded at the bottom (I use a 45-degree normally open temperature control switch). A 4 mm thick thermal conductive silicone grease pad can be used to conduct heat to the aluminum alloy shell. Supports multiple fast charging protocols. Input and output 5V 2006 specifications The fan can be fixed on the TX30 socket with 0.5 mm thick nano-double-sided tape. The aluminum alloy heat sink can be pasted with thermally conductive double-sided tape.
