STM32103ZET6 expansion board LCD12864 platform icedundun

Overview

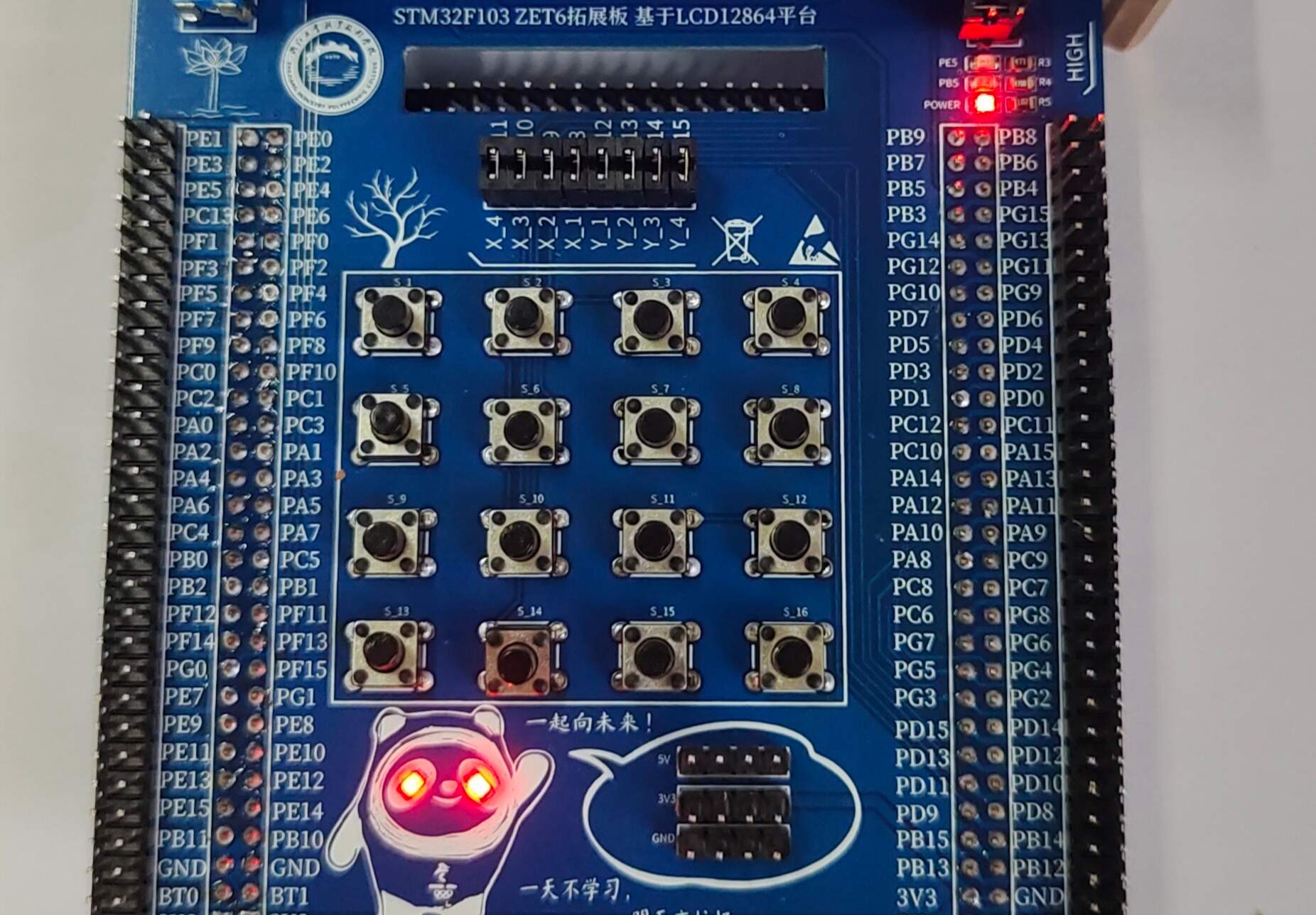

This expansion version is an external expansion version of the STM32F103ZET6 small system board. It includes 4*4 matrix buttons, 2 LEDs, which are high-level drivers. The display is an LCD12864 (5V drive) display. The version in the picture is V1. 0, now updated to version V2.1, which adds a reset function, layout adjustment, and additional functions. Bingdundun, the left eye is a 5V power indicator light, and the right eye is a 3V3 power indicator light. If the left eye is off, it means the computer USB is burned out. , if the right eye goes out, it means the development board is burned out.
