桂花蒸

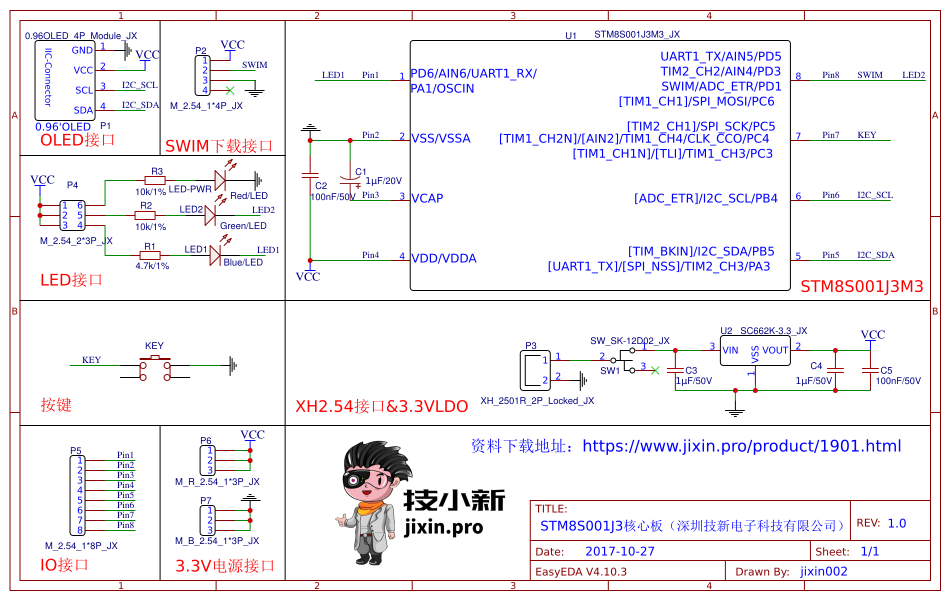

STM8S001J3M3

Overview

High-performance STM8 core, three-level instruction pipeline, main frequency up to 16M
8k FLASH, 1k RAM, 128Byte real EEPROM
3 main clock sources available: HSE, HSI, LSI
Low power consumption mode: wait, active-halt, halt
Peripheral clocks can be turned off independently,
32 mid-range vectors are embedded in power-on & power-down reset, up to 5 external interrupts,
two 16-bit timers, an 8-bit basic timer,
SPI single-wire interface (up to 8Mbit/s), IIC (up to 400kbit/s)
UART (main mode of SmartCard, lrDa, LIN)
3-channel 10-bit ADC, independent/continuous/buffered working mode,
5-channel general IO port, embedded single-line download & simulation interface SWIM

data download address: https://www.jixin.pro/product/1901.html

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
