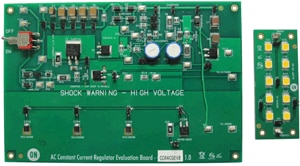

CCRACGEVB: NSIC Series Constant Current Regulator Device Evaluation Board

CCRACGEVB: NSIC Family of Constant Current Regulators Devices Evaluation Board

Overview

Evaluation board for the NSIC family of CCR devices. The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. The linear constant current regulator is a simple, economical and robust device designed to provide a cost-effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents.
