NB4N855SMEVB: Converter Evaluation Board

NB4N855SMEVB: Translator Evaluation Board

Overview

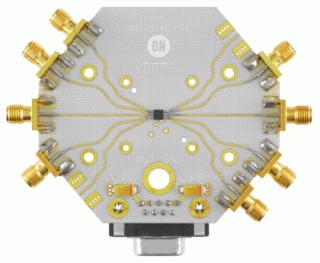

The NB4N855SMEVB has been developed as a convenience for the customers interested in performing their own device engineering assessment. This evaluation board provides a high bandwidth 50 ohm controlled impedance environment. The NB4N855SMEVB Manual contains appropriate lab setup, assembly instructions and bill of materials.
Features and Applications

Features
Guaranteed Input Clock Frequency up to 1.0 GHz
Guaranteed Input Data Rate up to 1.5 Gb/s
490 ps Maximum Propagation Delay
1.0 ps Maximum RMS Jitter
180 ps Maximum Rise/Fall Times
Single Power Supply; VCC = 3.3 V 10%
Temperature Compensated TIA/EIA-644 Compliant LVDS Outputs
GND + 50 mV to VCC - 50 mV VCMR Range

Design Files

NB4N855SMEVB Manual
