NBC124XXEVB: PLL Synthetic Clock Generator Evaluation Board

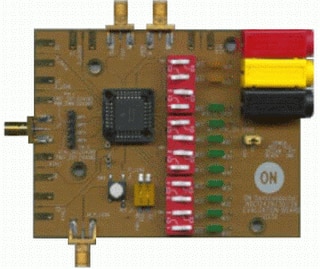

The NBC124XXEVB evaluation board provides a flexible and convenient platform to quickly evaluate, characterize and verify the performance and operation of all three NBC124XX clock generators (NBC12429/430/439). The evaluation board is equipped with a PLCC−28 surface mount socket.
Features and Applications


Features
Accommodates NBC12429/430/439 clock generators
Supports use of 10 MHz to 20 MHz through hole or surface mount crystal
Incorporates DIP switch controlled M and N logic. Pins are programmed on board, minimizing excess cabling
P_Load is push button or externally controlled
Serial input interfaces are accessed externally via SMA connectors
Convenient and compact board layout
3.3 V or 5 V split power supply operation
LVPECL/PECL differential output signals are monitored via SMA connectors
