NCP3232NGEVB: NCP3232NGEVB - High Current Synchronous Buck Converter

NCP3232NGEVB: NCP3232NGEVB - High Current Sync Buck Converter

Overview

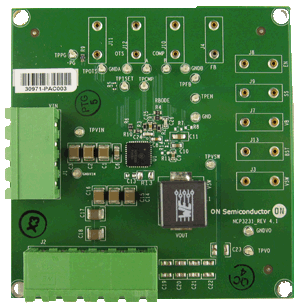

The NCP3232NGEBN evaluation board is a high current, high efficiency voltage mode synchronous buck converter that operates from an input voltage of 4.5V to 21V and produces an output voltage as low as 0.6V at loads up to 15A. It features a 500kHz switching frequency while providing good thermal performance. It also features discontinuous mode operation for all faults. The NCP3233GEVB Board can be found by clicking here: NCP3233GEVB Features and Applications Features Lossless low-side FET current sensing Output over-voltage and under-voltage protection System over-temperature protection using a thermistor or sensor through OTS pin Benefits Supports wide range of applications Supports small inductor and few output capacitors Good thermal

performance low number of output capacitors Good thermal performance
