NCS29001DGEVB: Low-cost single-channel LED driver evaluation board

NCS29001DGEVB: Low Cost Single Channel LED Driver Evaluation Board

Overview

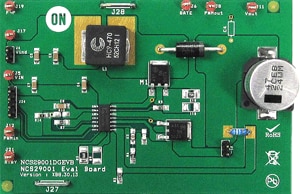

The NCS29001DGEVB evaluation board is designed to quickly evaluate the NCS29001, an integrated LED driver used in LCD display backlighting applications. A configurable bill of materials allows the designer to create a highly efficient solution for a variety of LCD screen sizes. The NCS29001 device uses a boost type converter to deliver constant current in a string of LEDs. High accuracy PWM dimming is supported for a frequency up to 500 Hz . The integrated soft start function provides excellent control during the power up sequence to avoid current overshoot. Further, the device protects against output overvoltage, open and short LED, and thermal overload. For more information please see the data sheet. The NCS29001 is offered in the cost effective SOIC14 package.
