NCV7535V5C450GEVB: SPI controlled H-bridge pre-driver

NCV7535V5C450GEVB: SPI Controlled H-Bridge Pre-Driver

Overview

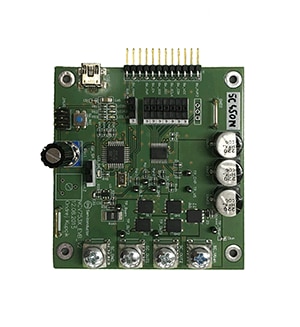

The NCV7535V5C450GEVB Evaluation Board is a monolithic SPI controlled chip with enhanced feature set useful in automotive systems. Besides the SPI bus interface, the IC features an H?bridge pre?driver to control a DC?motor. This allows a highly integrated solution. Evaluation Board Features
N?MOSFET Reverse Protection and Decoupling on the Main
(Battery) Supply
On?board +5 V LDO
MCU with USB Interface Controlling NCV7535
One?row Pin Header, providing the Circuit Signals, enables Easy Insertion of the Evaluation Board into a more Complex Application Setup
On?board Current Sensing Shunt Resistor and Operational Amplifier
Good Thermal Connection of the Power MOSFETs allowing High Current Capability
Oscilloscope Test?points on all Important Signals
M4 Screw Connectors for Power Signals (Battery, Ground, Output)
