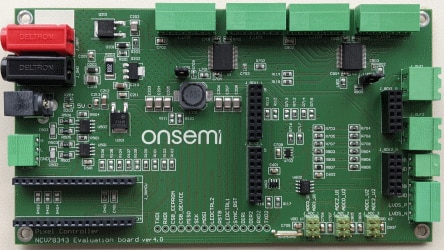

NCV78343R1GEVB: NCV78343 motherboard

The NCV78343 mother board features two NCV78343 pixel controller devices.
Board can be used to individually control up to 24 pixels.
UART as a communication protocol is available on both CAN PHY and M-LVDS layers, which allows to simulate different system architectures directly
on the board. There is an optional slot for NCV78763R1DAGEVB boost-buck converter to supply current for LED string. ONMCU3V3R1GEVB MCU control board can be inserted into dedicated socket as interface between PC
and evaluated devices.
Board features CAN and M-LVDS connectors to allow chaining of multiple devices, NCV78343R1GEVB mother boards or NCV78343R1DAGEVB satellite boards.
Features and Applications


Features
Up to 24 individually controlled pixels
Fully controllable by the SW GUI via USB cable
Supports two interfaces: CAN and M-LVDS
Supports different system architectures
Possibility to connect more pixel controllers in a chain
Wide input supply voltage range
