NVH820S75L4SPB-EVK: VE-Trac Direct EZ Kit

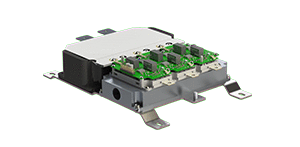

The VE-TracTM Direct Evaluation Kit contains a VE-Trac Direct Power Module (NVH820A75L4SPB) mounted in a cooling jacket, along with a 6-channel gate driver board and a DC link capacitor. The kit does not include a PWM controller or external current sensors. The evaluation kit allows customers to evaluate the performance of the VE-Trac Direct Power Module in the early stages of inverter development. The kit can be used as a double pulse tester to measure key switching parameters, or as a three-phase inverter to control a motor. Features and Applications Features Inverter Evaluation Hardware Kit for EV/HEV Traction Inverter Applications (up to 150kW) VE-Trac Direct Power Module with 820A, 750V Field Stop 4 IGBT/Diode Chipset and Integrated Direct Cooling. Automotive Isolated High Current and High Efficiency IGBT Gate Driver with Internal Galvanic Isolation, NCD57000. Thin Film DC Link Capacitor Rated up to 500VDC, 500 uF.


The VE-TracTM Direct Evaluation Kit consists of a single VE-Trac Direct power module (NVH820A75L4SPB) mounted in a cooling jacket, with a 6-ch Gate driver board and a DC Link capacitor. The kit does not include a PWM controller or external current sensors. The evaluation kit allows the customers to evaluate VE-Trac Direct power module performances in the early stage of inverter development. The kit can be used as a double pulse tester to measure key switching parameters or used as a 3- ph inverter for motor control.
Features and Applications


Features
Inverter evaluation Hardware kit for EV/HEV Traction Inverter applications (up to 150kW)
VE-Trac Direct power module with 820A, 750V Field stop 4 IGBT/Diode chipset and integrated direct cooling.
Automotive Isolated high current and high efficiency IGBT gate driver with internal galvanic isolation, NCD57000.
Film DC Link capacitor rated up to 500V DC, 500 uF.
