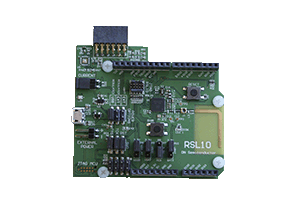

RSL10-002GEVB: Radio SoC Evaluation Board, Version 1 (QFN based)

RSL10-002GEVB: Radio SoC evaluation board, version 1 (QFN based)

Overview

The RSL10 development board is used to easily develop Bluetooth® low energy technology-enabled applications based on the industry’s lowest power radio System-on-Chip (SoC).
Key Features: Compliance with the Arduino form factor
Support for PMOD (e.g., J4 is a standard connector)
On-board J-Link feature for simple debugging
Alternate on-board SWJ-DP (serial-wire and/or JTAG) for ARM® Cortex® -M3 processor debugging
Access to all RSL10 peripherals via standard 0.1" headers
On-board 4-bit level translator to translate the LPDSP32 debug interface at a low voltage to a 3.3 V JTAG debugger
Antenna matching and filtering network
Integrated PCB antenna
