SEC-PTC400-EVB: HVAC PTC IGBT Driver

Overview

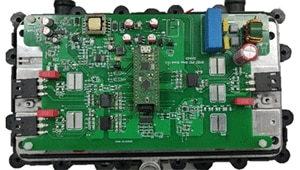

The PTC IGBT Driver is a complete system solution for PTC HEV/EV vehicles applications, incorporating the power train, gate drivers and auxiliary subsystems to facilitate the adoption in custom designs. The system achieves high performance and compactness by combining together the incredibly low-conduction loss Field Stop IGBT technology ( FGH40T65) with high-performance isolated gate drivers ( NCV57000). Auxiliary isolated power supply is provided via a flyback configuration based on the NCV8871 non-synchronous controller. Visit the EV Auxiliary power solutions site to learn how ON Semiconductor can help with our comprehensive and advanced portfolio.´
Features and Applications

Features
Input voltage – 200 ~ 400 Vdc
Output – ~ 380 Vdc, ~ 1.8 kW
Imax 40 A rms
GPIO/PWM control interface (the MCU board is not included in the system)
Galvanic isolated IGBT gate driver NCV57000
High-current IGBT Field Stop IGBT FGH40T65
Isolated power supply for IGBTs gate drivers
Current and voltage sensing circuitry
High side and low side gate driver solution
Low voltage DC-DC conversion solutions

Benefits

Complete system solution and reference design for a PTC system

High performance system thanks to Field Stop IGBT technology, isolated gate drivers and flyback auxiliary power supply

Applications
HEV/EV Automotive PTC systems
Automotive HVAC
