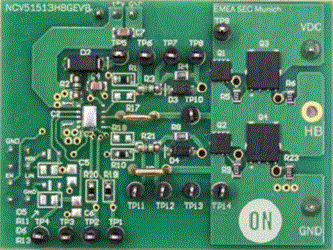

SECO-NCV51513HB-GEVB: SECO-NCV51513HB-GEVB evaluation board

SECO-NCV51513HB-GEVB: SECO-NCV51513HB-GEVB EVAL BOARD

Overview

NCP51513 is a 130 V half bridge driver with high drive current
capabilities and options for DC−DC power supplies and inverters.
NCP51513 offers best in class propagation delay, low quiescent
current, and low switching current at high frequencies of operation.
This device is tailored for highly efficient power supplies operating
at high frequencies. NCP51513 is offered in two versions
for propagation delays. With filter version, it has a typical 50 ns
propagation delay, while without filter version has a typical
propagation delay of 20 ns. Internal 80 ns dead time and interlock
function protect the output MOSFETs against cross conduction events.
Enable functionality provides additional system flexibility and helps
reducing power consumption.
