STR-1KW-MDK-GEVK: 1kW 600V Industrial Motor Development Kit (MDK) with compact Intelligent Power Module (IPM) board and Universal Controller Board (UCB)

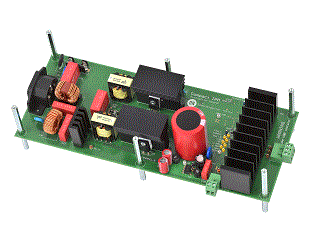

The STR-1KW-MDK-GEVK is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package, and part of the Motor Development Kit (MDK). Rated for 230 Vac input and delivering up to 850W. All the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter and measurement and protection. The graphical user interface ensures an easy startup for evaluation purposes running voltage/frequency control. As part of the MDK the Compact IPM power module motor drive is compatible with the powerful Universal Controller Board (UCB) enabling high-end control strategies and AI capabilities for industrial motor control. The STR-1KW-MDK-GEVK comprises of the SECO-1KW-MCTRL-GEVB, the hardware adaptor to the UCB and the Universal Controller Board (UCB).

• The SECO-1KW-MCTRL-GEVB is orderable separately as well.
Features and Applications


Features
Motor Development Kit (MDK)
Compatible with the Universal Controller Board (UCB) FPGA/ARM
Fully compatible with Xilinx® development tools for Zynq®-7000
Strata Enabled
Downloadable V/f and FOC control use cases for the UCB
850W Intelligent Power Module (IPM) three-phase motor driver
VIN: 230 Vac,rms ± 15% (single-phase)
IOUT: Irms 10 ARMS per phase
Compatible with three-phase motors: PMSM, BLDC or ACIM
DIP/6 IPM NFAQ1060L36T, three-phase/10A with integrated gate drivers
Cross-conduction, overcurrent and thermal protection embedded in DIPS6 module
Plug-in connector interface for MCU cards (Arduino DUE footprint)
Voltage/frequency control strategy implemented
NCS2250SN2T3G: Push Pull Output Comparator implemented in ITRIP protection system
Use case pre-loaded and Strata enabled available for a quick-start evaluation
Xilinx® development tools and environments are available for the MDK, such as Vitis and Vivado to program the FPGA





Applications
White Goods (Washing Machines)
Industrial Fans
Industrial Automation
Industrial Motor Control
