STR-NCP171-EVK: Strata-enabled NCP171 - 80mA Dual Supply Mode LDO with 0.6V to 3.3V Fixed Output Voltage

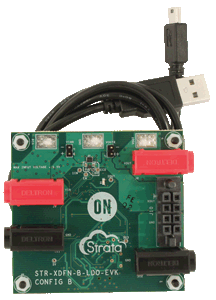

The STR-NCP171-EVK provides an evaluation kit for the NCP171 family of 80 mA dual-mode XDFN4 packaged LDOs with fixed output voltages ranging from 0.6 V to 3.3 V. In low power mode, the NCP171 achieves quiescent currents as low as 50 nA and the output voltage can be reduced by internally programmed values ​​of 50 mV, 100 mV, 150 mV, and 200 mV. The ultra-low quiescent current and dual-mode capabilities make this LDO optimized for battery-powered or low-power applications. This evaluation kit can be used in conjunction with the Strata environment GUI, which can enable/disable the LDO, switch between active and low-power modes, and monitor other telemetry data on the platform, including input/output voltages, power consumption, and temperature. For more details, visit the Strata web page at www.onsemi.com/strata! Click to Download Strata Features and Applications Features Vin Range: 1.7 V to 5.5 V Maximum Load Range: 80 mA Vout Range: 0.6 V to 3.3 V Ultra-low Quiescent Current: 50 nA Dual Power Mode for More Power Savings Factory Programmed Output Voltage Offset: Active / Low Power Mode Applications DC-DC Power Supplies Battery Powered Devices IoT Analog and RF


The STR-NCP171-EVK provides an evaluation kit for the NCP171 series of 80 mA dual mode XDFN4 package LDOs with a fixed output voltage range from 0.6 V to 3.3 V. In low power mode, the NCP171 can achieve a quiescent current as low as 50 nA, and the output voltage can be lowered by an internally programmed value of 50 mV, 100 mV, 150 mV, and 200 mV. The ultra-low quiescent current and dual mode capability make this LDO optimized for battery powered or low power applications. This evaluation kit provides an evaluation kit for the NCP171 series of 80 mA dual mode XDFN4 package LDOs with a fixed output voltage range from 0.6 V to 3.3 V. In low power mode, the NCP171 can achieve a quiescent current as low as 50 nA, and the output voltage can be lowered by an internally programmed value of 50 mV, 100 mV, 150 mV, and 200 mV. The ultra-low quiescent current and dual mode capability make this LDO optimized for battery powered or low power applications. This kit can be used in tandem with the Strata environment GUI which can enable/disable the LDO, switch between Active mode and low power mode, as well as monitor other telemetry on the platform, including input/output voltage, power dissipated, and temperature. See the Strata webpage at www.onsemi.com/strata for more details! Click to Download Strata
Features and Applications


Features
Vin range from 1.7V to 5.5V
Max load range of 80mA
Vout range from 0. 6V to 3.3V
Super low quiescent current of 50nA
Dual power mode for more power savings
Factory programmed output voltage offset between Active/Low Power mode





Applications
DC-DC Power
Battery Powered Devices
IoT
Analog and RF
