TEVAL-SILPLC01: Main control STM32H723VG, safety certified PLC industrial board

Overview

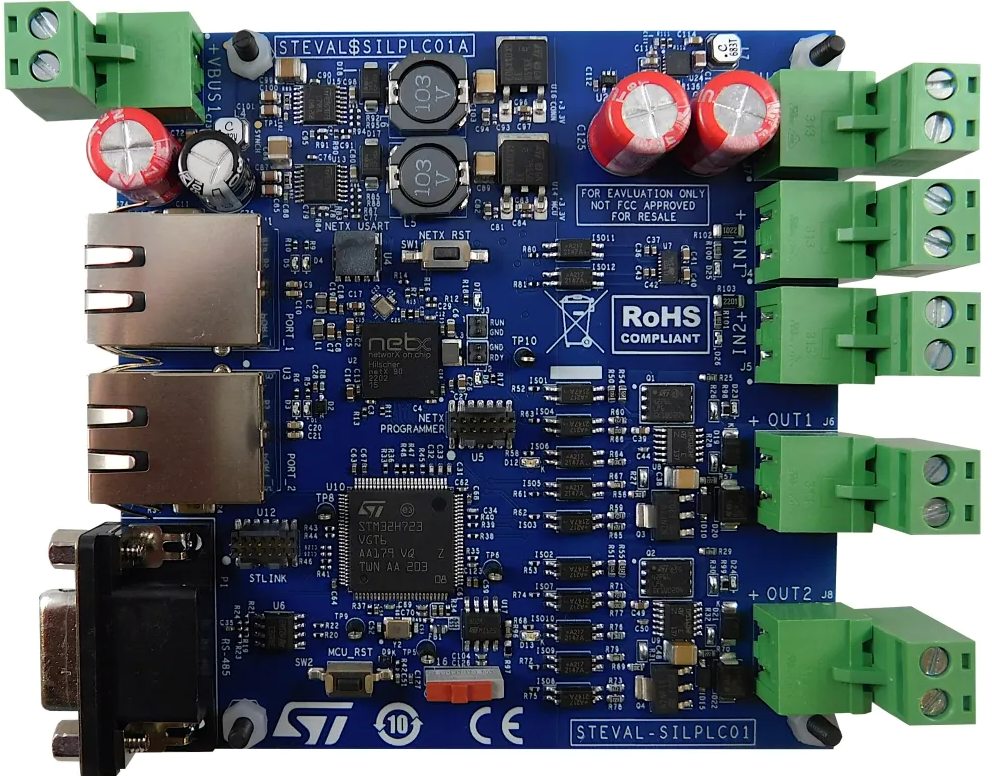

STEVAL-SILPC01 is a PLC solution with 1oo2 architecture, featuring CLT03-2Q3 dual-channel digital input and IPS160HF single-channel digital output. The hardware design meets the SIL level. It has been officially evaluated by TÜV Italia (TÜV SUD Group) to SIL 2/PL d requirements: Random failure rate, system capabilities (for hardware), architectural limits in accordance with IEC 61508, EN 62061, EN ISO 13849 - 1, EN ISO 13849-2 standard. The system is built around the STM32H723VG microcontroller. It manages connectivity, load driving and system diagnostic checks for power management, digital input/output ICs and temperature monitoring simultaneously.

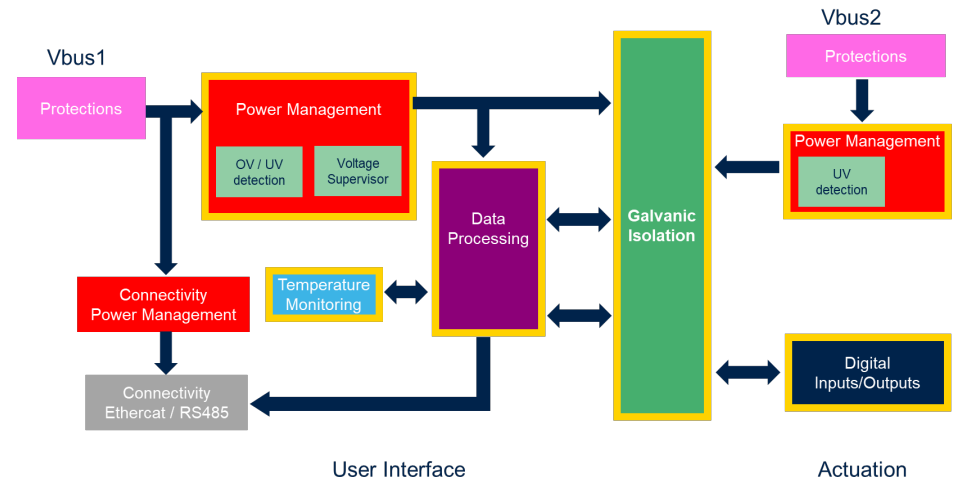

Blockdiagram

Design Files

Schematic diagram, etc.
