[Verified]smartknob-original

Verified (official version number 0.4)

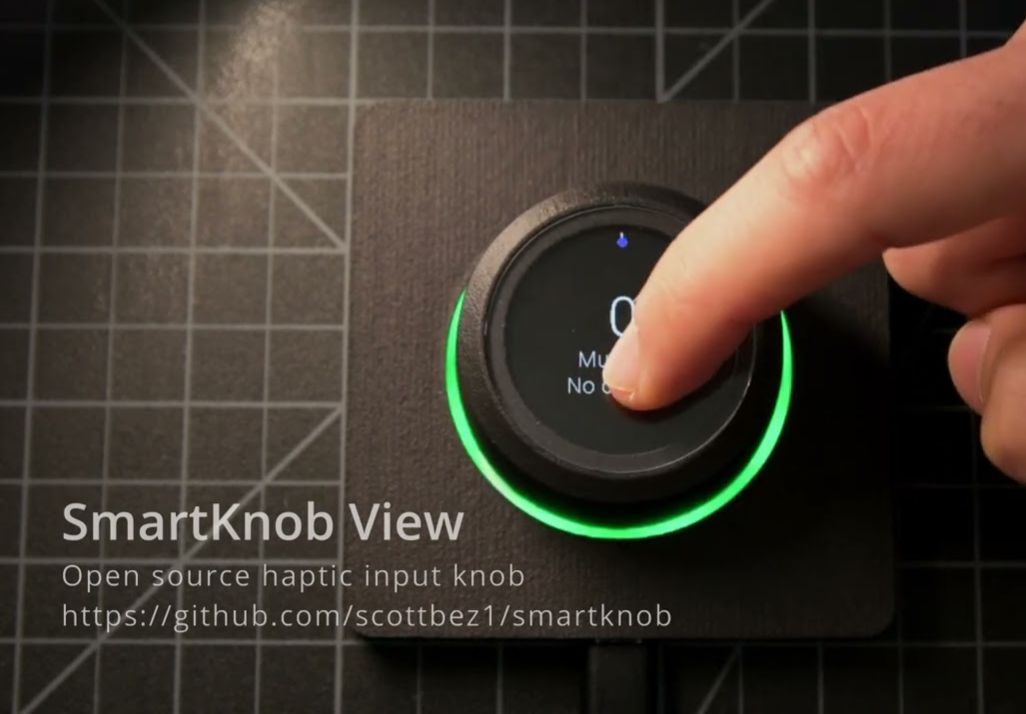

project originates from: https://github.com/scottbez1/smartknob
The purpose is to facilitate everyone to use this version directly under JLC PCB

1 History

November 23, 2022: Updated resistance list ( Use Smartknob Mall components), upload the modified shell data
October 15, 2022: Smartknob EDA version hardware data view_base_1 has been verified and available, upload the official original firmware smartknob-releases-view_base-v0.4
October 1, 2022 Day: Upload the official original hardware information (KICAD)

2.

There is no purchase channel for the original motor structure. It is difficult to 100% reproduce the original version.

2.1 The

micro pan/tilt motor model I used is 3205 three-phase brushless motor (there are two models) ) With NdFeB strong magnetic ring - Taobao (taobao.com)
2.2 Motor adapter

After replacing the motor, the previous shell will be 1mm smaller and needs to be adjusted. Please refer to the attachment casing-V0.02.123dx.
The new motor and the bottom circuit board are not the same. To match, you need to use a structural component to adapt, please refer to the attachment adapter-0808.STL (this file comes from QQ group 23691677)

2.3 The copper pillar

is used for threading in the middle and fixing the screen, model M2.5*25, I use M2M2.5 Double-pass hexagonal copper column M3M4 double-ended isolation column nut column support column motherboard computer stud M5M6-tmall.com Tmall

3 hardware

L1 is not welded, use 0R to replace
all seats and have not been purchased.
You need to prepare a little ultra-thin wire for direct welding. Multi-strand enameled wire connects the motherboard and screen

4 firmware
