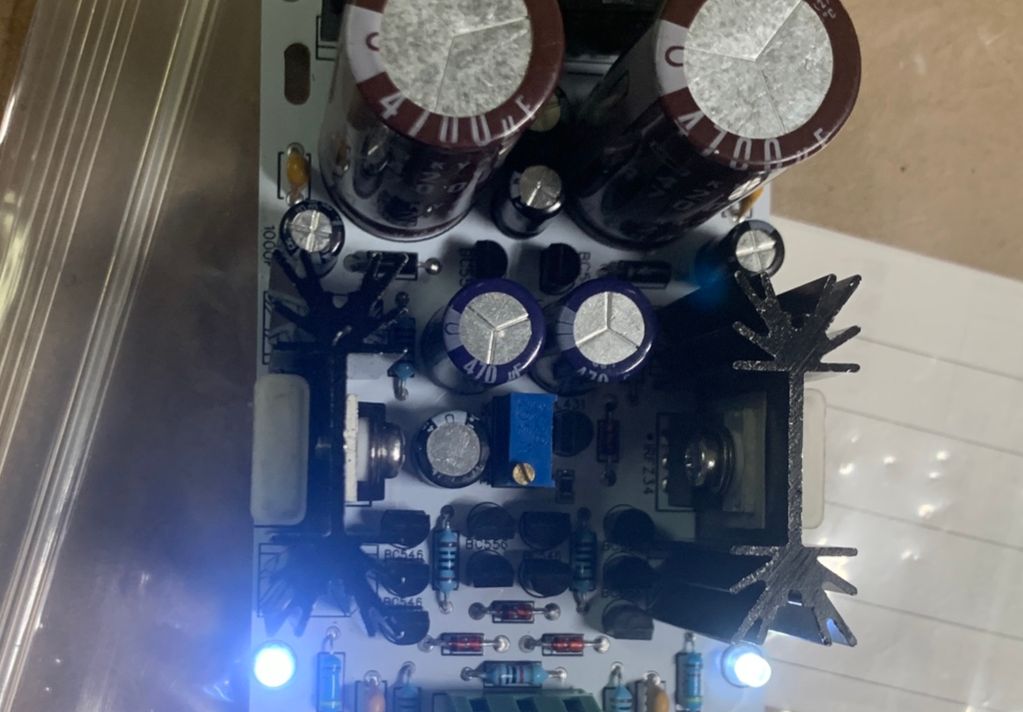

Sigma22 discrete linear regulated power supply

Overview

Following the positive and negative voltages, this small heat sink can carry 1-2a current, and the mos is not very sensitive to heat.
I sell this in my own Taobao store, you can see the Taobao link, but there’s nothing much to say https://item.taobao.com/item.htm?ft=t&id=694517954996
It’s just a discrete linear power supply.
The input can be dual AC 9-25v, and the output voltage difference is about 5-7v. Just leave a good voltage difference for the target output voltage.
