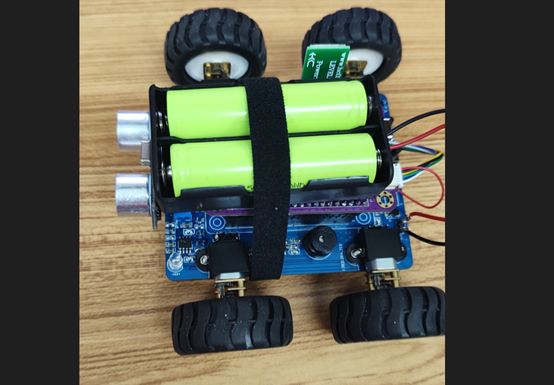

Liangshanpai Intelligent Car

Overview

Based on the design of Liangshan School smart car ,
onboard functions are introduced:
LED lights, warning lights
Mobile phone Bluetooth control: remote control of car movement through wireless module and Bluetooth module
Five-way tracking module: infrared reflection detection to detect black line tracking
Active buzzer alarm: use buzzer to warn
Ultrasonic obstacle avoidance: use ultrasonic module to detect obstacles in front
Four-way motor drive (there are some problems with the wheels of the car in the video)

Design Files
