High power induction heating 2500W Enhanced ZVS

Overview

High-power ZVS totem induction heating
is a great product.
It is improved on the basis of the original induction heating, adding totem drive, improving driving ability, and solving the problem of resistance heating.
Those who are interested can play with it

. Supplement: The board has upgraded the process, and the copper pillar uses M4*35, don’t buy the wrong one. Add wx-18038952482 to the press, I will link it to you.
Later, it will be improved and upgraded according to the valuable feedback from netizens. 2023.3.24-Change

the material table

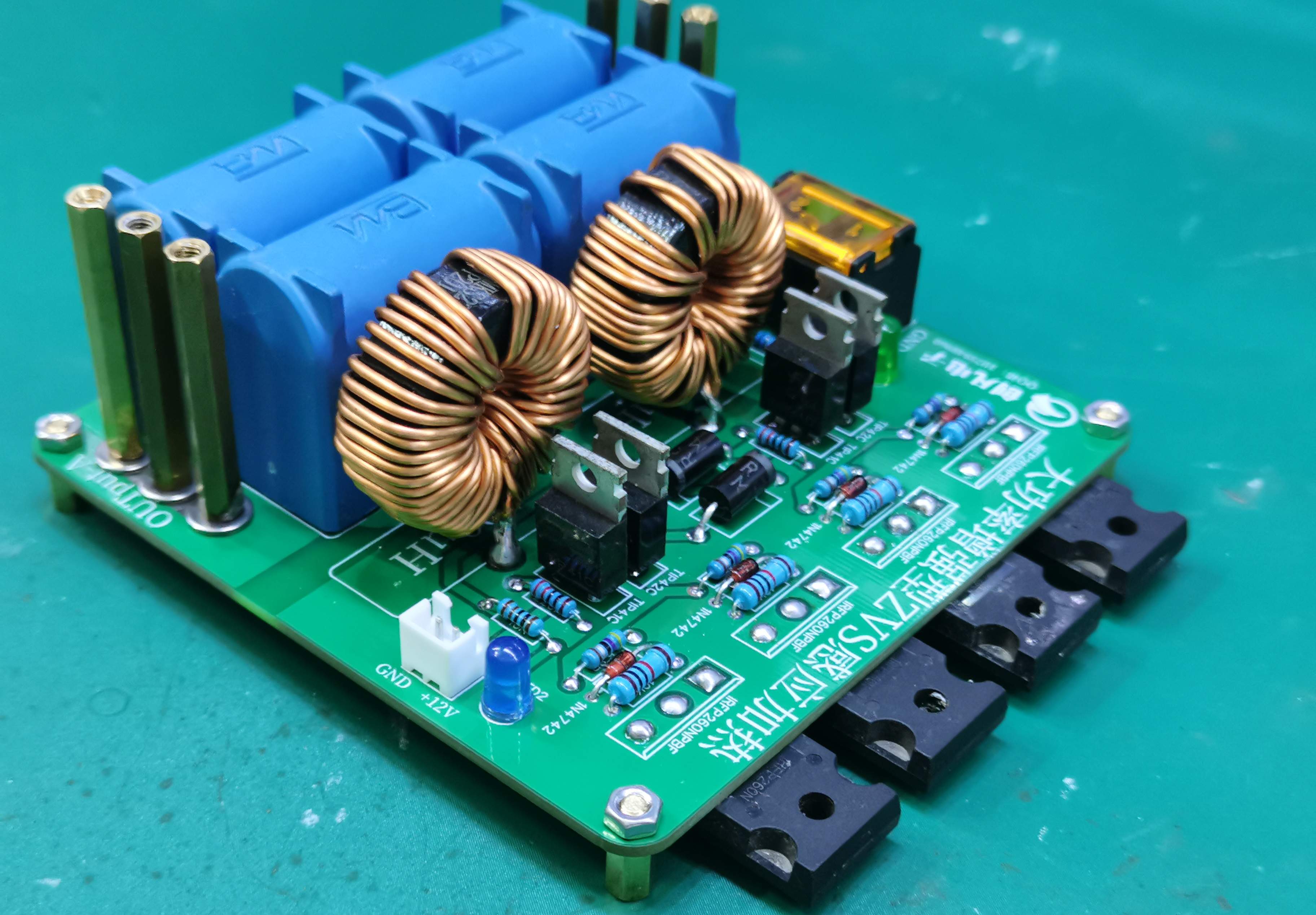

sample picture

Bilibili test video: [High-power totem induction heating ZVS-Bilibili] https://b23.tv/zrLFYNb

The file has been open source. If you need it, you can download

the ZVS induction heating project file. It is simple and easy to make, and you can do it with your hands.
ZVS induction heating has a simple structure, high power, wide application, low cost, zero threshold to get started, and cheap and easy to buy materials.
