L3GD20HTR solution verification board

Overview

* This project is used to verify that the Lichuang Mall angular velocity sensor L3GD20HTR (Mall No. C128360) is compatible with the L3GD20TR (Mall No. C116866) solution verification board design

- -

This design is a small board based on the L3GD20 sensor.

> **Introduction**

* Compatible with ** L3GD20HTR** and ** L3GD20TR, you can choose one of the two for welding. **
* L3GD20H is a low-power three-axis angular rate sensor, which includes a sensing element and a digital interface.
* Able to provide measured angular rate to external processing through digital interface (I2C/SPI).
* The sensing element is manufactured using a dedicated micromachining process developed by ST. The integrated circuit interface is manufactured using CMOS technology.
*The circuit has been fine-tuned to better match the characteristics of the sensing element.
*The L3GD20H has a full scale range of ±245/±500/±2000 dps with user-selectable bandwidth measurement rates.
* Operates in the temperature range of -40°C to +85°C.

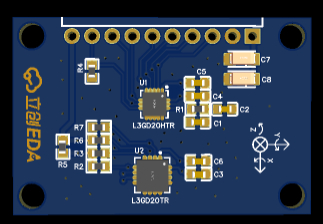

* ![TIM screenshot 20200505003055.bmp]
