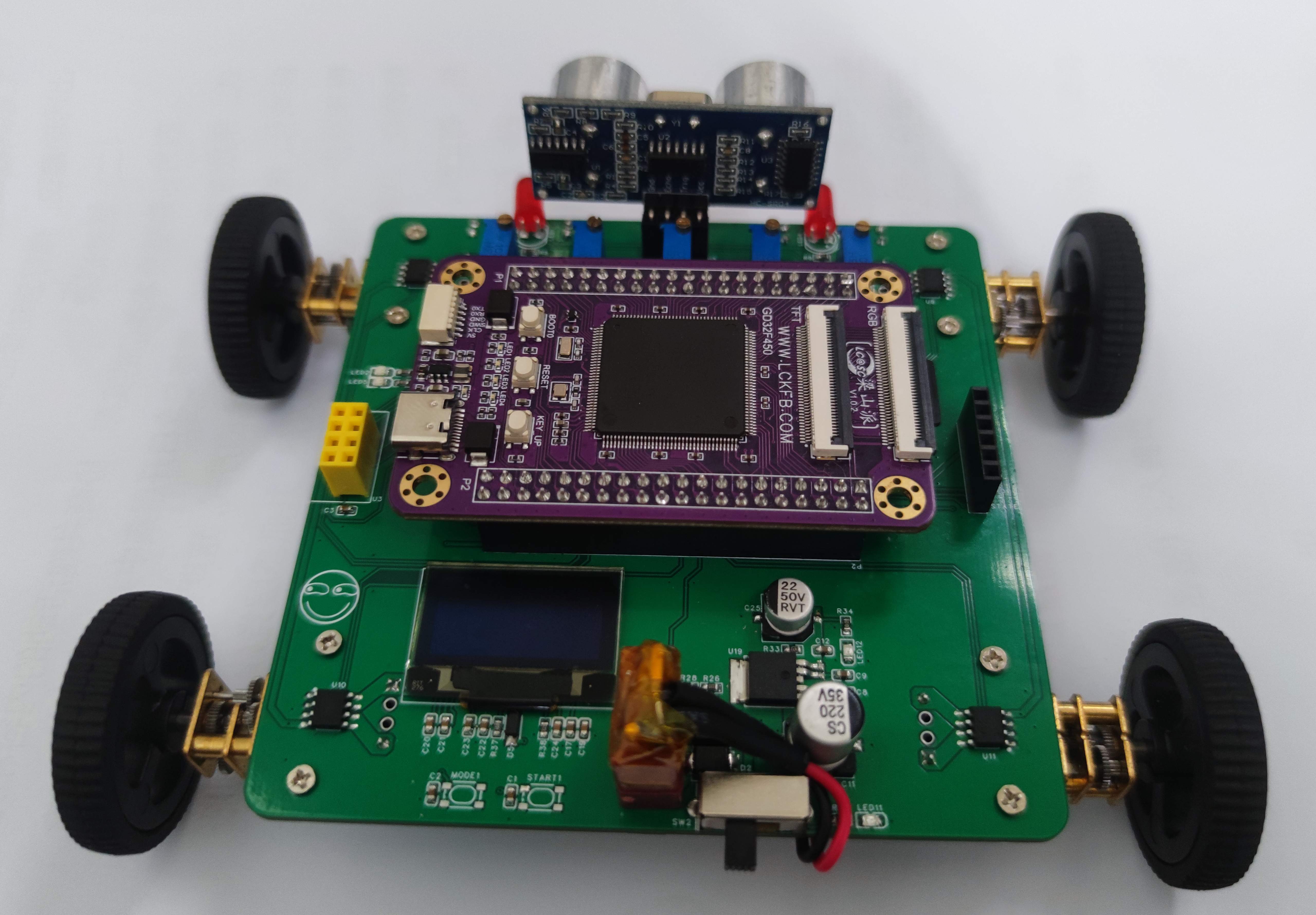

Liangshan faction car

## **Question requirements**
1. Based on Liangshanpai development board
2. Self-designed-originality


## **Description of car board functions**
1. Ultrasonic ranging module-obstacle avoidance car
2. Infrared module-tracking car
3. Status indicator-car status indication
4. Buzzer-car status indication 5.
2.4G module-remote control
6. Bluetooth module-remote control



## **Schematic design description** ### 1. The power chip selects Infineon's TLE42754D. This LDO is a car-grade LDO with a wide temperature tolerance range and good stability. It can continuously output 450mA current, package TO252-4, generate little heat, and dissipate heat quickly. ![1.png]
