STC12C5A60S2_LQFP44 to PDIP40

Overview

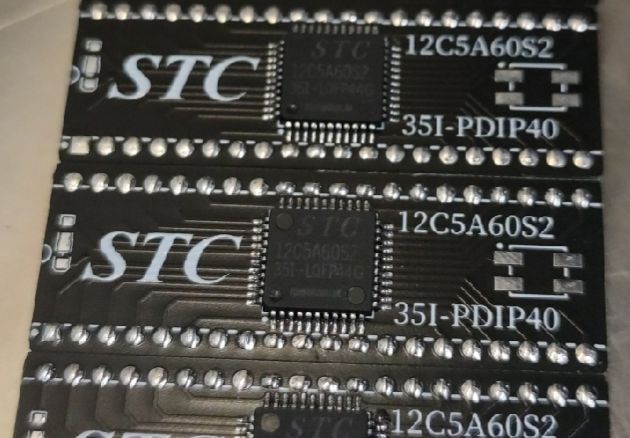

The LQFP44 package of STC12C5A60S2 is converted to PDIP40 package, which can be used on some older boards;
P4.0, P4.1, P4.2, and P4.3 of the LQFP44 package are led out from the patch pin header on the top surface.
