Flying-RC_F405-SE_v2.0 top cover

Overview

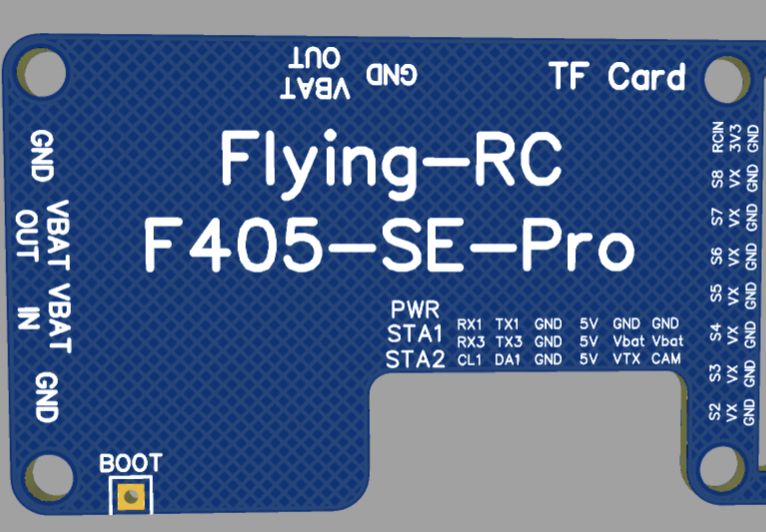

The top cover seems to be of no use? Prevent accidental short circuit, pins are clearly marked

Used with Flying-RC_F405-SE_v2.0.
