Pass through machine distribution board 2-6s (tested)

Overview

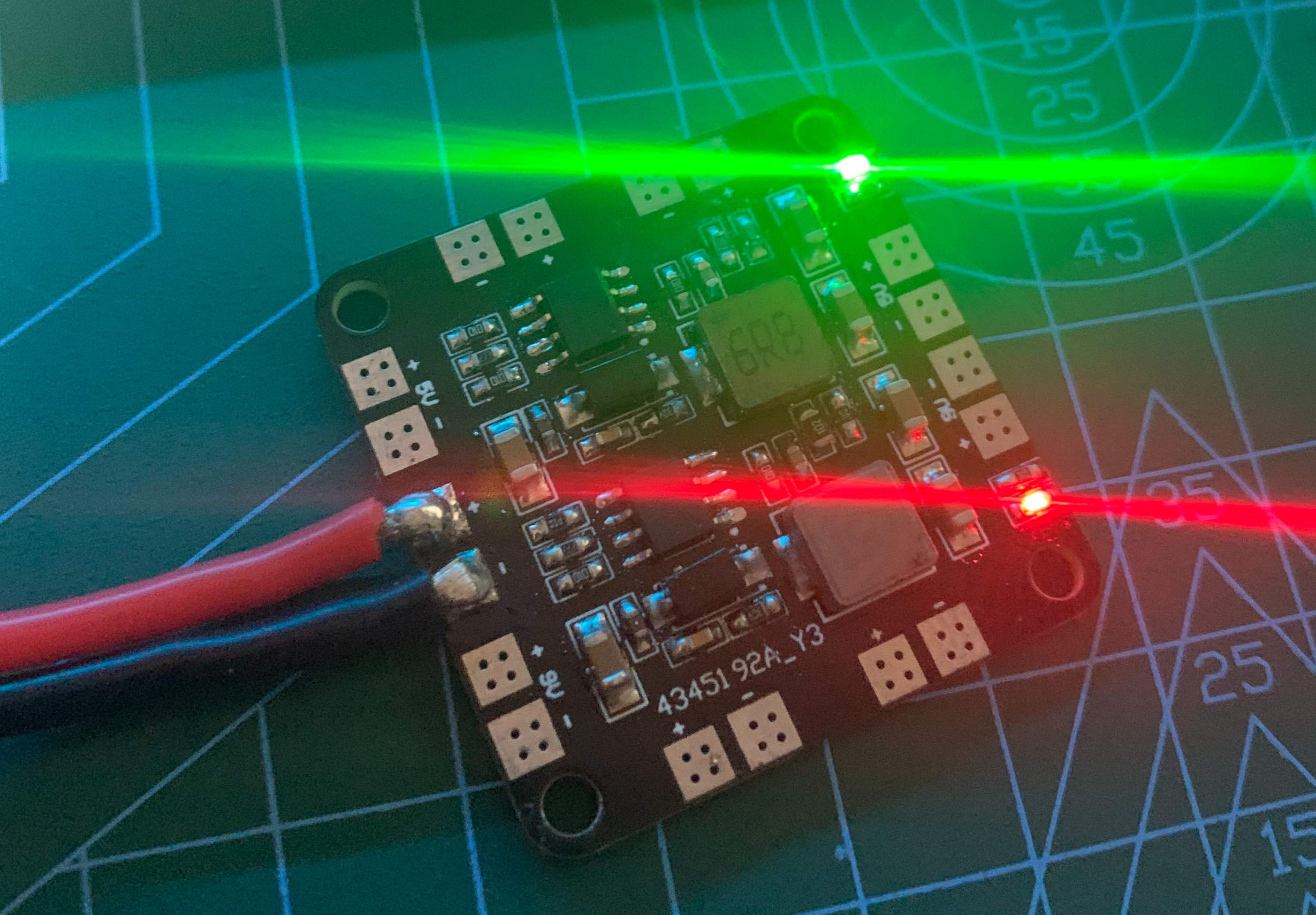

FPV distribution board, 5-28v input (that is, 2-6s), output 5V 9V, each with a power indicator light.
The cost is about 4 yuan each. I have tested the waveforms with an oscilloscope and the board has been used for half a year. There are no problems.
2023.1.3, heat dissipation is optimized, and the distance between the power indicator light and the assembly hole is increased.
